VODL可调光延迟线

VODL可调光延迟线

0.0/5 rating (0 votes)

Description

简单介绍:
VODL(Variable Optical Delay Line)可调光延迟线可精密稳定的控制光线的延时,精度为150fs。与参考的光路(可选)相比,可进行600ps之内的可控时延。
详情介绍:
VODL可调光延迟线(Variable Optical Delay Line)的特点:此款VODL(Variable Optical Delay Line)可调光延迟线可精密稳定的控制光线的延时,精度为150fs。与参考的光路(可选)相比,可进行600ps之内的可控时延。
The vodl enables a very precise and stable control of light delay. It features a reference arm (in option) that enables the devices to give an absolute precision of the delay in respect with the reference. This delay is independent of the temperature because it is done in air. We can provide also a free space In & Out. For PM versions we can either block the unwanted polarization, the device acting also as a polarizer with high Polarization Extinction Ratio, or keeping both polarizations, while minimizing crosstalk between polarizations

VODL可调光延迟线(Variable Optical Delay Line)Application:
● Optical paths matching,
● Balancing optical receivers or photodiodes,
● Signals synchronisation,
● Interferometric measurements.

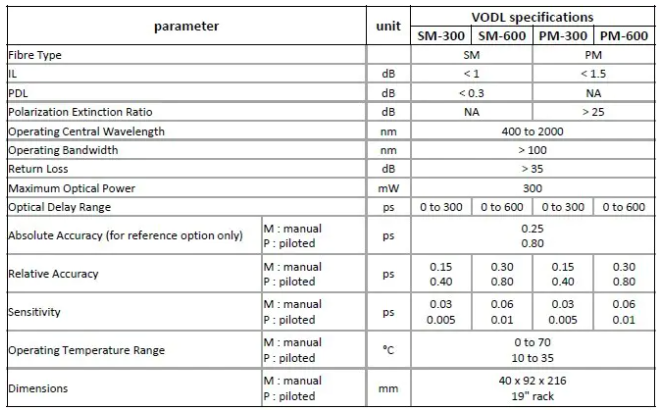

VODL可调光延迟线C45









Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
