Ultra MINI 4CH CWDM Spec

产品描述/Description
We can offer full range of WDMCWDM/DWDM products including common CWDM packed in ABS box with single devices spliced inside and second generation MINI CWDM modules utlizes free space technology. And also third generation ultra MINI CWDM module for 40G application. This document specifies the performance of a ultra MINI WDM module which also utlizesfree space technology but with ultra-compact size and high reliability for 40G, 100G or 100G application. All CWDM productsare Telcordia GR-1209 and GR-1221 compliance.

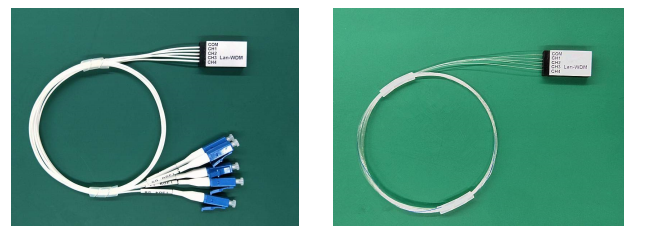

产品示图/Product picture

特点/Features
● 低损耗Low Insertion Loss
● 高稳定性和可靠性/High Stablity and Reliability
● 尺寸小/Compact size

应用/Applications:
● 高速率光模块/High Speed Transceiver Solution
● 电信通信/Telecommunication

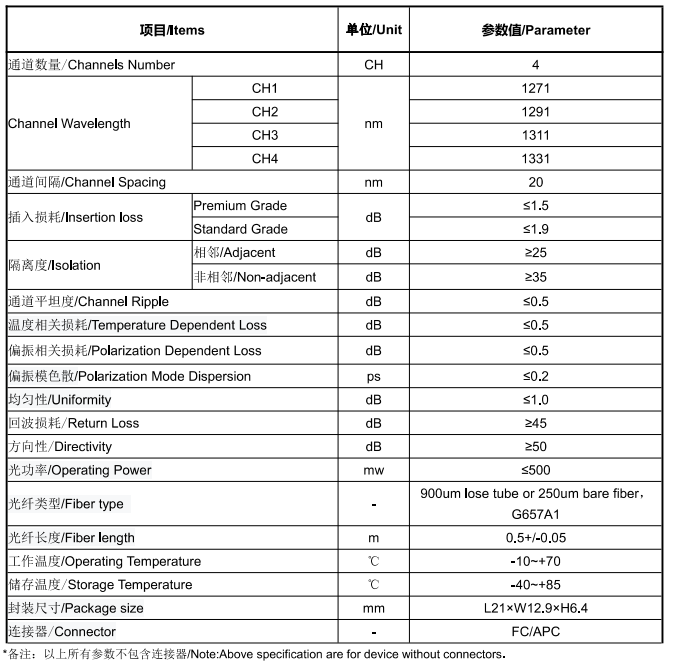

性能规格/Performance Specifications

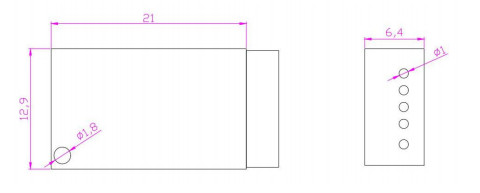

示意图/Package Dimension

注：本产品有全国产化型号可选本
产品为FT-13系列波分复用器，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
