SFP-4.25G-850NM

SFP-4.25G-850NM

5.0/5 rating 1 vote

Specifications

  • 产品型号: FTCS-8542-02X
  • 兼容品牌: 全系列
  • 封装类型: SFP
  • 传输速率: Operating Data Rate up to 4.25Gb/s
  • 传输距离: 550M
  • 发射波长: 850nm
  • 接收波长: 850nm
  • 工作温度: 商业级0℃~+70℃/工业级-40℃~+85℃ 可选
  • 数字诊断: 带DDM/不带DDM 可选
  • 接收灵敏度: 550M
  • 接收灵敏度: 550M

Description

Features
     Single 3.3 V supply
     Up to 500m on 50/125µm MMF, 300m on 62.5/125µm MMF
     Supports 1.0625/2.125/4.25Gb/s Fibre Channel Operation
     Gigabit Ethernet compatible
     850nm VCSEL laser transmitter
     SFP MSA SFF-8074i compliant
     Digital Diagnostic SFF-8472 compliant
     Compatible with RoHS
     Operating case temperature:
            Standard :  0 to +70°C
            Industrial : -40 to +85°C

Applications
• Tri Rate 1.0625 / 2.125 / 4.25Gbp/s Fibre Channel
• 4.25Gbp/s 1000Base-LX Ethernet and 1000Base-LX10

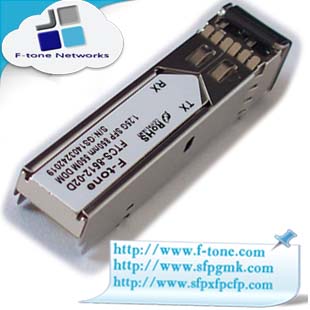

SFP-850nm

Description
The transceiver consists of three sections: a850nm VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control  unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are compatible with Fibre Channel per FC-PI-2 Rev. 10.0.  also simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3.

订货信息/Ordering information :

Part No. Description
FTCS-8542-02 SFP,4.25G,Single mode (1310nm,550M,LC,Temperature:0 ~+70℃)
FTCS-8542-02I SFP,4.25G, Single mode (1310nm,550M,LC,Temperature:-40~+85℃)
FTCS-8542-02D SFP,4.25G,Single mode (1310nm,550M,LC,Temperature:0 ~+70℃,DDM)
FTCS-8542-02DI SFP,4.25G, Single mode (1310nm,550M,LC,Temperature:-40~+85℃,DDM)

Notice:
The above is just list out our regular product information, if you can’t find out the products which you need from the form, Please contact our sales.
For more informationPlease mail to sales#F-tone.com (Please @ instead of #)
