QSFP28 Passive Copper Cable Assembly

QSFP28 Passive Copper Cable Assembly

0.0/5 rating (0 votes)

Description

Features
●Compliant with SFF-8665
●Compliant with IEEE 802.3bj
●Up to 100Gb/s data rates
●Ultra-low crosstalk for improved performance
●Low insertion loss
●Tested in an end-to-end system
●Compliant with RoHS

Applications
●Low EMI radiation Switches, servers and routers
●Data Center networks
●Storage area networks
●High performance computing
●Telecommunication and wireless infrastructure
●Medical diagnostics and networking
●Test and measurement equipment

Product Description
F-tone Networks’s FT-77-CAB-ZQP/ZQP-PxM passive copper cables provide robust connections for leading edge100Gb/s systems. Passive copper cables require no additional power to ensure quality connectivity. The100Gb/s passive copper cables are fully compliant with SFF-8436 specification and provide connectivity between devices using QSFP28 ports.F-tone Networks’s FT-77-CAB-ZQP/ZQP-PxM 100Gb/s passive copper cables fill the need for short, cost-effective connectivity in the data center.
F-tone Networks’s high-quality solutions provide a power-efficient replacement for active power connectivity such as fiber optic cables for short distances. Optimizing systems to operatewithF-tone Networks’s FT-77-CAB-ZQP/ZQP-PxM 100Gb/s passive copper cables significantly reduces power consumption and EMI emission.

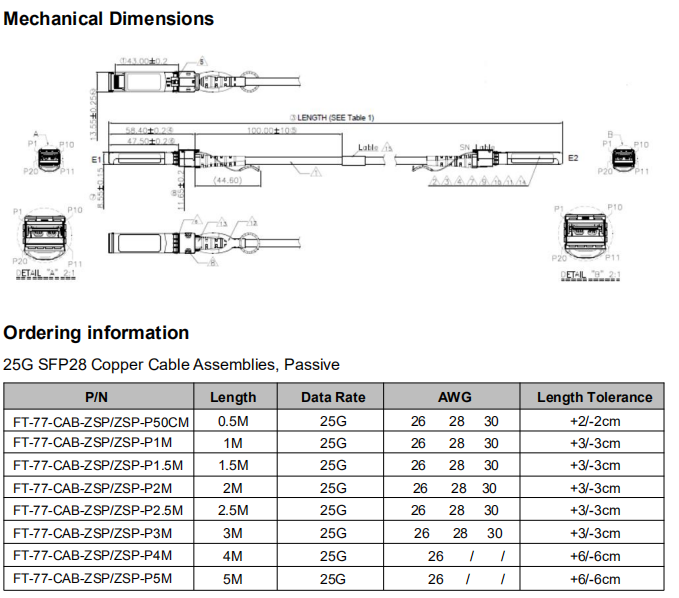

28











Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
