QSFP+ Active Optical Cable
Specifications
- 产品型号: QSFP-AOC40G-X
- 兼容品牌: 全系列
- 封装类型: QSFP+
- 传输速率: 40G
- 传输距离: Up to 100M transmission
- 发射波长: 850nm
- 接收波长: 850nm
- 工作温度: 商业级0℃～+70℃/工业级-40℃～+85℃ 可选
- 数字诊断: QSFP+ Active Optical Cable
- 接收灵敏度: QSFP+ Active Optical Cable
- 接收灵敏度: QSFP+ Active Optical Cable
Description
QSFP+ Active Optical Cable
F-tone QSFP Active Optical Cable (AOC) FTCQ-8540G-PCT-XX and FTCQ-8540G-PCT-XX*-1 is a high performance integrated cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10 Gbps with lengths ranging from one to 100 m. These Active Optical Cables utilize multimode fiber using a nominal wavelength of 850nm. The electrical interface uses a 38-contact edge type connector. F-tone is producing QSFP+ to QSFP+ AOC and QSFP+ to FOUR SFP+ AOC.
Application:
- InfiniBand QDR (4 x 10G), DDR (4 x 5G) and SDR (4 x 2.5G) interconnects
- High Performance and High Productivity computer interconnects
- Data Aggregation, Backplane and Proprietary Density Applications
- PCI-Express, SAS/SATA, Fibre Channel compatible interconnect
- Datacom and Telecom switch and router backplane connections
Ordering information:
| Package | Part No. | Fiber Type | Aggregate Data Rate | Wavelength | Distance | Connector | DDM | Application |
| QSFP+ | FTCQ-8540G-PCT-XX* | MMF | 40G | 850nm | 1m to 100m | AOC | D | 40GBASE-SR4 |
| QSFP+ to 4*SFP+ | FTCQ-8540G-PCT-XX*-1 | MMF | 40G | 850nm | 1m to 100m | AOC | D | 40GBASE-SR4 |
*Length measured OM3 fiber. XX denotes the AOC length with unit meter. For example, 01 denotes 1m, 02 denote 2m … 99 denote 99m and 1H denotes 100m
QSFP AOC Wiki
Active Optical Cable (AOCs) extremely low power consumption, improves overall data center power consumption and thermal efficiency. AOC’s use single mode silicon photonics (SiPh) to enable long transmitting on single mode ribbon fiber. AOC pigtails (QSFP+ to MPO) allow for easy plug in to installed SM structured cabling, thus eliminating the need to pull the AOC through long distances.
AOCs reduced cable bulk compared to larger diameter copper cabling enable deployment of additional ports for increased number of AOCs per system, resulting in more connectivity options and total system cost savings. Optical pluggable QSFP+ MTP† cable assemblies are available in 12-fiber 3.00mm round cable and a robust 4.50mm round cable.
Advantages of Active Optical Cables (AOC) Compare to Copper Twinax Cables
- Longer reach
- Bit Error Rate (BER) 1000 times better than copper cables
- Lower weight and tighter bend radius enable simpler cable management
- Thinner cable allows better airflow for cooling
- Lower power consumption
- No need for power-hungry conditioning ICs on the host board
Advantages of Active Optical Cables (AOC) Compare to Optical Transceivers
- Datacenter/Consumer friendly:
- No cleanliness issues in optical connector
- Cost-optimized:
- Not constrained by optical interface specifications driven by longer reach applications
Disadvantage: Cannot be routed through optical patch panels

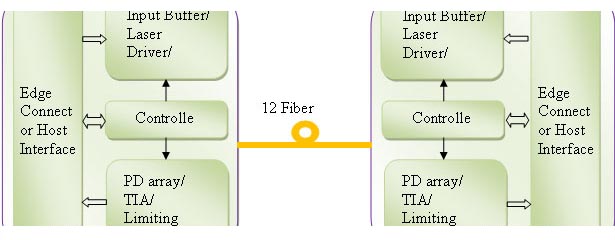

QSFP inside
Related Products
40BASE-SR4 300m QSFP+ Gen2 Optical Transceiver Module
- Four-channel full-duplex transceiver module
- Hot-pluggable QSFP+ form factor
- Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
- Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
- Unretimed XLPPI electrical interface
- Maximum power dissipation < 1.5W
- Reliable VCSEL array technology
- Built-in digital diagnostic functions
- Commercial operating case temperature range 0°C to 70°C
- Single 1x12 MPO receptacle
- RoHS-6 compliant (lead-free)
40G Ethernet 100m QSFP+ Optical Transceiver Module
- Hot-pluggable QSFP+ form factor
- Supports 41.2 Gb/s aggregate bit rates
- Power dissipation < 1.5W
- RoHS-6 compliant (lead-free)
- Commercial temperature range 0°C to 70°C(Standard)/-40°C to 85°C (Industrial)
- Single 3.3V power supply
- Maximum link length of 100m on Multimode Fiber (MMF OM3)
- Uncooled 4x10Gb/s 850nm transmitter
- XLPPI electrical interface
- Single MPO receptacle
- Built-in digital diagnostic functions
40G Ethernet 10km QSFP+ Optical Transceiver Module
- Hot-pluggable QSFP+ form factor
- Supports 41.2 Gb/s aggregate bit rates
- Power dissipation < 3.5W
- RoHS-6 compliant (lead-free)
- Commercial temperature range 0°C to 70°C(Standard), -40°C to 85°C (Industrial)
- Single 3.3V power supply
- Maximum link length of 10km on Single Mode Fiber (SMF)
- Uncooled 4x10Gb/s CWDM transmitter
- XLPPI electrical interface
- Duplex LC receptacles
- Built-in digital diagnostic functions
40G Multirate 10km QSFP+ Optical Transceiver Module
F-tone's QSFP-40GM-LR4 QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links and 4x10G OTN client interfaces over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 requirements specified in ITU-T Recommendation G.695. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC, and F-tone Application Note AN-2038.
QSFP+ Transceiver
F-tone QSFP+ (Quad Small Form-factor Pluggable Plus) is a new Multi-Source Agreement (MSA) for high speed application, such as 40G-BASE, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps.
QSFP+ Loopback
QSFP/QSFP+ Passive Electrical Loopback FTCQ-XLB is used for testing QSFP/QSFP+ transceiver ports in board level test. The electrical loopback provides a cost effective low loss method for QSFP/QSFP+ port testing. The FTCQ-XLB is packaged in a standard MSA housing compatible with all QSFP/QSFP+ ports.
