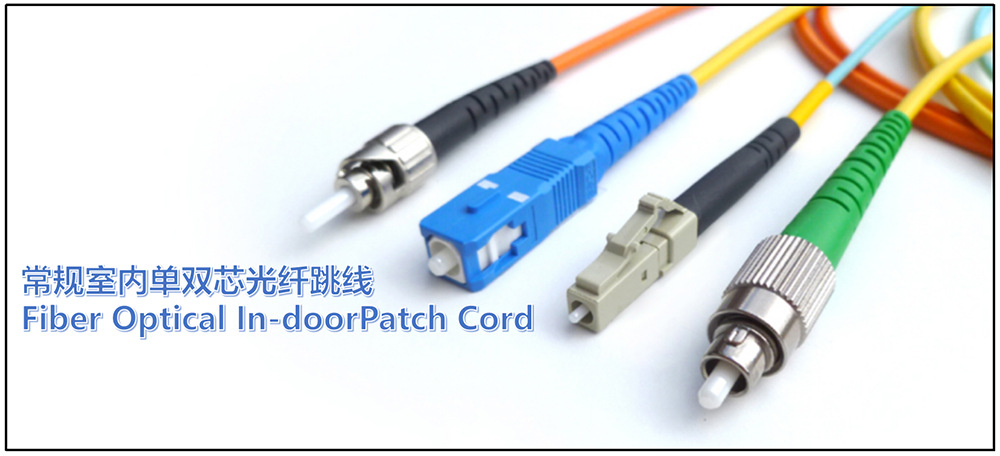

常规室内布线光纤跳线，是使用常规室内布线光缆，两端加装指定型号的光纤连接器而制作的通信光纤连接线材。
Indoor patch cord is current normal one. it is used to attach one device to another for signal routing.

应用: Application:

◆数据传输 Data transmission.  ◆电信网 Telecommunication.  ◆测试设备 Testing equipment.
◆CATV光纤 Optical fiber CATV. ◆宽带网 WBN.                ◆室内局端布线 LAN.


产品特性: Feature:
◆PC,UPC,APC多处研磨方案 PC UPC APC polishing optional.
◆高可靠性与稳定性 High credibility and stability.
◆高回波反射损耗，低插入损耗 Low insertion loss, high return loss.
◆插芯端面400倍电子检测 400X microscope inspecting.
◆良好的重复性和互换性 Good in repeatability and exchangeability.
◆单模或多模光纤任选 Singlemode or Multimode fiber optional.

产品分类: Classification:

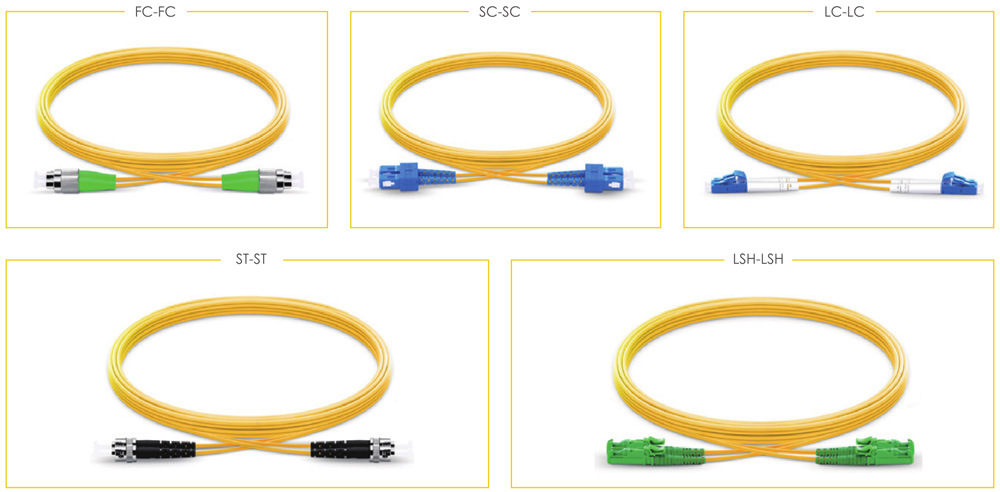

该系列的跳线有多种分类方式，可根据两端光纤连接器型号分类SC,FC,LC,ST,MU,DIN,D4,E2000,LX.5,MTRJ,VF-45光纤跳线，SC-FC……等转接型光纤跳线.

Patch cords are classified by connectors at both ends,there are SC,FC,LC,ST,MU,DIN,D4,E2000,LX.5,MTRJ,VF-45, and SC-FC……etc hybrid patch cords.

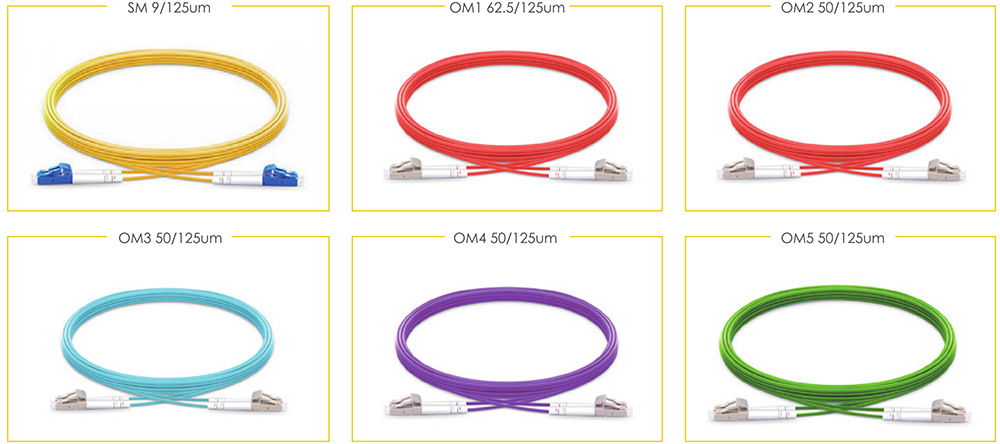

可根据纤芯型号分类，如单模光纤跳线，千兆OM1 OM2多模光纤跳线，万兆OM3 OM4多模光纤跳线等
Patch cords are classified by fibers, there are SM, OM1,OM2,OM3,OM4 patch cords.

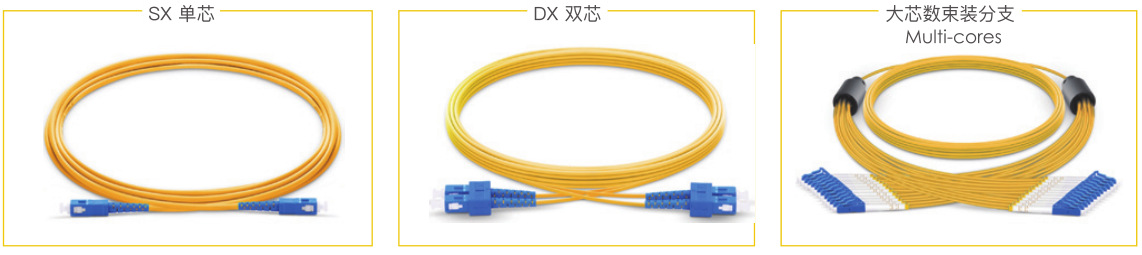

可根据纤芯芯数分类，如单芯光纤跳线，双芯光纤跳线，大芯数分支光纤跳线，大芯数束装光纤跳线

Patch cords are classified by cores number, there are simplex, duplex,and mutifiber bundle or multifiber distribution patch cords.

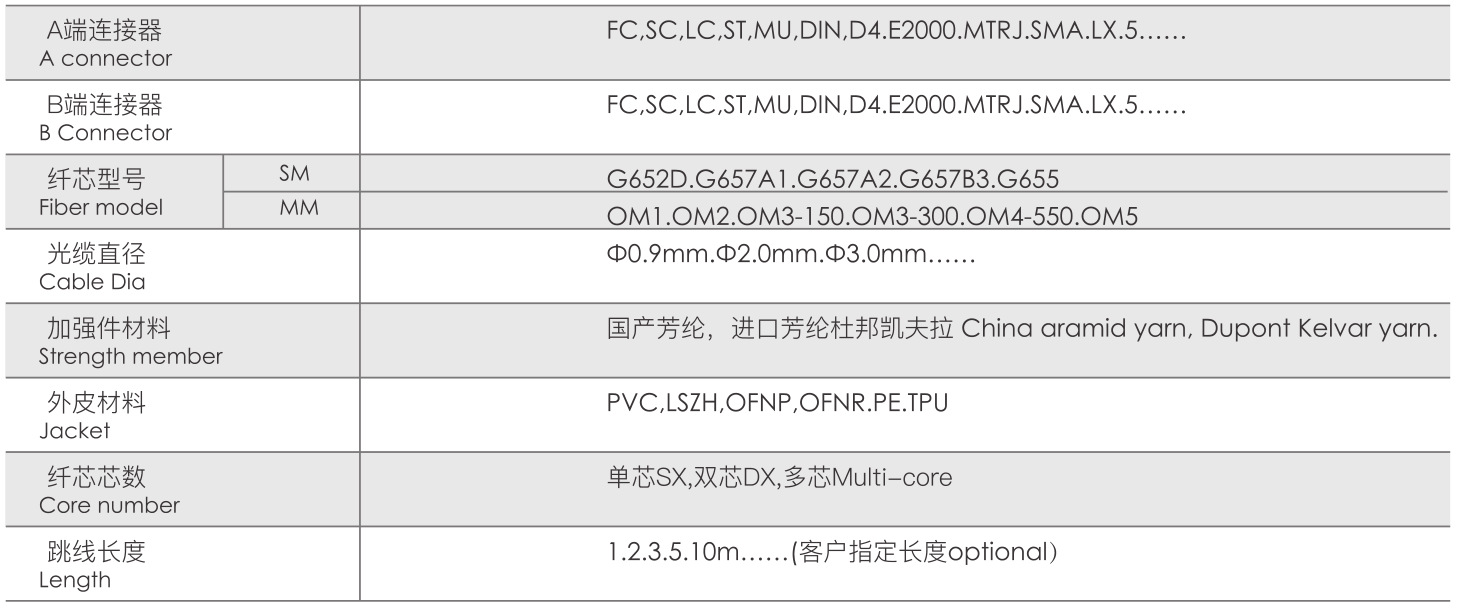

常规室内布线光纤跳线订货信息表 Order information:

常规光纤跳线选型示例:Example:
SC/UPC-SC/UPC SM G652D φ3.0mm LSZH外皮 进口纱 双芯 10M
SC/UPC-SC/UPC SM G652D φ3.0mm LSZH Kavlar yarn DX 10M
