MSA Compliant SFP+ Electrical Passive Loopback
Description
MSA Compliant SFP+ Electrical Passive Loopback
Product Description
F-tone’s SFP+ Loopback modules provide an effective way of testing the SFP+ port in the host system by looping back the electrical signal (optics are excluded). The units provide basic serial ID information that attempts to mimic a shortwave Gigabit Ethernet, 1.25G, 2.125G FC SFP+ transceiver, 4.25G FC, 8.5G FC and 10Gb/s Ethernet/FC for factory, environment, installation, simulation tests.
Features
● Custom Memory Maps
● Supports 10Gb/s total data rate
● Full SFF-8431 MSA Comp
● Hot-pluggable MSA foot print
● Temperature range from 0° to 80°C
● Compliant with SONET, SDH, GBE, FC
● MSA Compliant EEPROM
Applications
● Loopback testing of 1G/10G Ethernet SFP+ host ports
● Loopback testing of 1.25G, 2.125G, 4.25G, 8.5G, 10G FC host ports

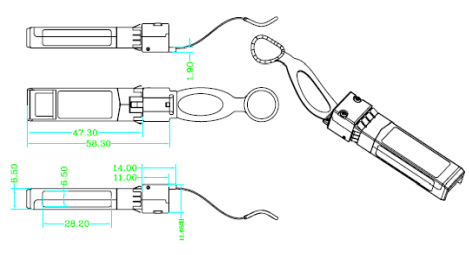

Mechanical Specifications
Order Information
注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
