馈线连接器

0.0/5 rating (0 votes)

Description

北亿纤通专业研发生产:馈线连接器, 是一家专业的馈线连接器厂家,具有优质的馈线连接器品质,有很好的馈线连接器价格,馈线连接器海量交付给国防、军工、航空、航天、兵器、舰船、雷达、电子、核工业、军事、电力、铁路、医疗、交通、通信、电信、政府、国防科技工业系统内大专院校及科研院所

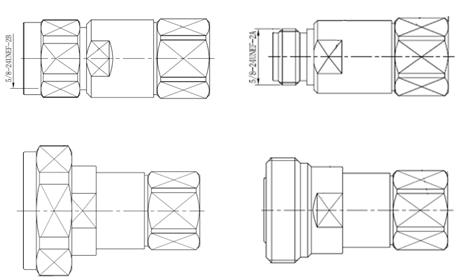

连接器型号

•  N 型、  7/16 DIN 型88

标准

IEC 60169-16; IEC 60169-4

电气特性

特性阻抗

频率范围

驻波

介质耐压

接触电阻

绝缘电阻

外导体

内导体

50Ω

DC-3GHz

0.7~1.0GHz≤1.12

≥2000V RMS ,AC,1Min

N型

≤0.25mΩ

≤1.0mΩ

≥5000MΩ

1.7~2.7GHz≤1.15

7/16 DIN型

≤0.2mΩ

≤0.4mΩ

机械特性

N型

7/16 DIN型

保持力

内导体

≥0.56N

≥6N

耐久性

装配次数

≥500次

≥500次

环境特性

盐雾试验

温度范围

环保

满足48小时(5%盐浓度)

-40℃~+85℃

满足

材料及涂镀

零件

材料

镀层

外壳

黄铜

三元合金≥3μm

内导体

黄铜/锡磷青铜

银≥3μm

绝缘子

聚四氟乙烯/聚甲基戊烯

密封圈

硅橡胶

其他金属件

黄铜

镍≥2.5μm











Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
