J599MT多模插头带1个MT尾纤,200m

产品性能
产品主要性能指标：
a)机械性能
机械寿命： 500 次插拔循环
冲击： 加速 490m/s2，持续时间 11ms
振动： 10 Hz～2000 Hz，加速度 147 m/s²
b)环境性能
工作温度： -40 ℃～+80 ℃
盐雾： K 类 1000 h，F 类 48 h，W 类 500 h
c)光学性能
插入损耗： ≤0.6 dB

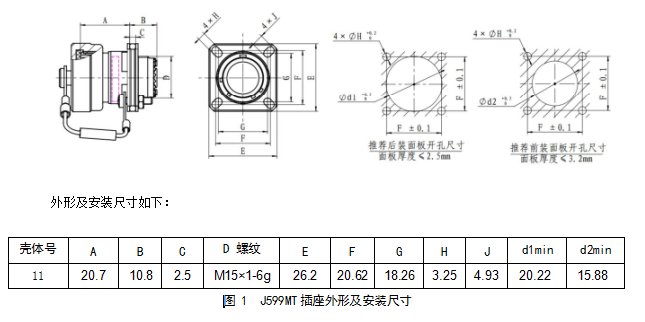

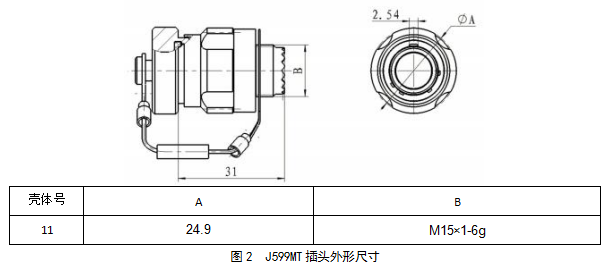

外形及安装尺寸

产品接点排列(插座插合面)

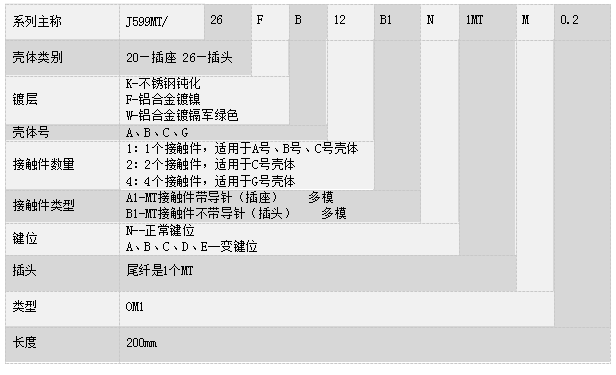

型号示例

例 1： J599MT/26FB12B1N-1MT-M0.2，表示 J599MT 插头，B 号壳体，镀层为铝合金镀镍，接触件为 1 个 12 芯 MT 插针,N 键位，1MT为尾纤是1个MT，M为OM1,长度为200mm。

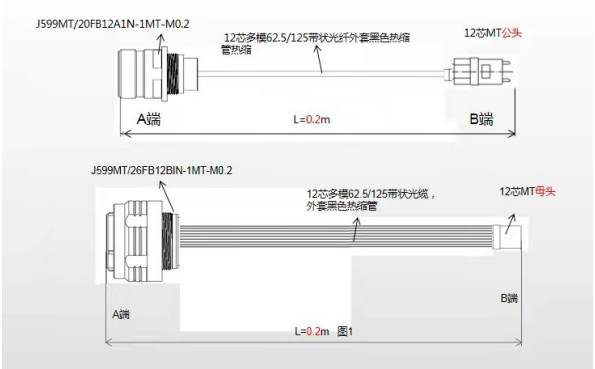

示意图

注：本产品有全国产化型号可选
