Ultra Compact CWDM / 微型 CWDM 器件系列

Ultra Compact CWDM / 微型 CWDM 器件系列

0.0/5 rating (0 votes)

Description

Ultra Compact CWDM / 微型 CWDM 器件系列

产品特点/ Features
● Low insertion loss.
● High wavelength accuracy
● Extended temperature range
● Excellent thermal stability
● Extremely small size

产品应用/ Applications
● High speed transceivers
● CWDM systems
● Metro and Access networks
● CATV network

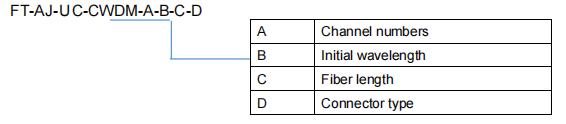

订购参数确认 / Order information

36

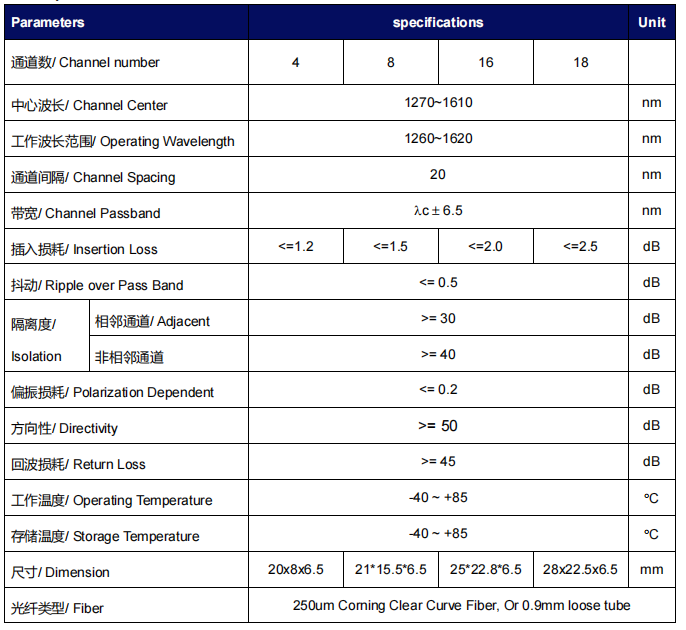

Main specifications

36

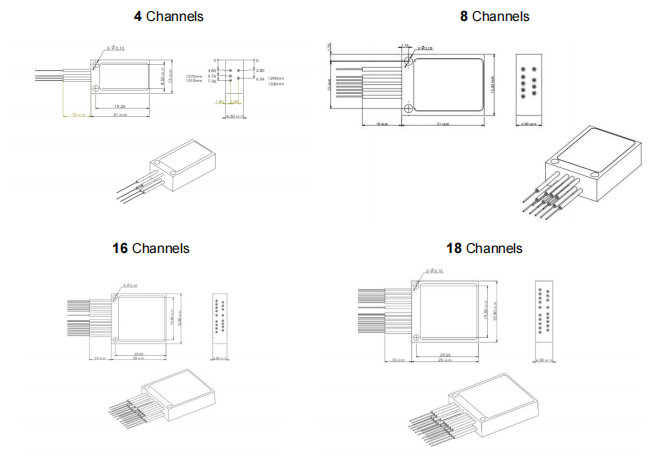

产品尺寸/Mechanical Dimensions

36













注：本产品有全国产化型号可选
本产品为FT-AJ系列波分复用器，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
