Ultra Compact 12CH CWDM

北亿纤通专业研发生产(全国产化可选):Ultra Compact 12CH CWDM, Ultra Compact 12CH CWDM海量交付给国防、军工、航空、航天、兵器、舰船、雷达、电子、核工业、军事、电力、铁路、医疗、交通、通信、电信、政府、国防科技工业系统内大专院校及科研院所

4CH Lan-WDM Spec

产品描述/Description
We can offer full range of WDMCWDM/DWDM products including common CWDM packed in ABS box with single devices spliced inside and second generation MINI CWDM modules utlizes free space technology. And also third generation ultra MINI CWDM module for 40G application.

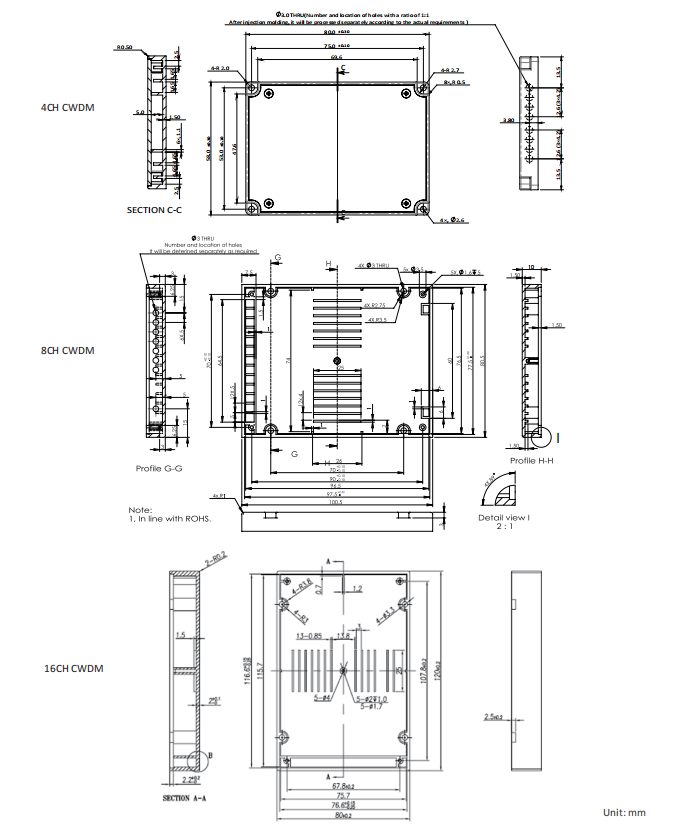

4/8-CH Compact CWDM Mux/Demux module(4/8-CH CCWDM)

Description
F-tone Networks’s compact size Coarse Wavelength Division Multiplexers(Mini CWDM, Compact CWDM, CCWDM), are integrated optical modules using F-tone Networks’s proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost.

100G/200G DWDM

Description
Dense wavelength division multiplexer (DWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

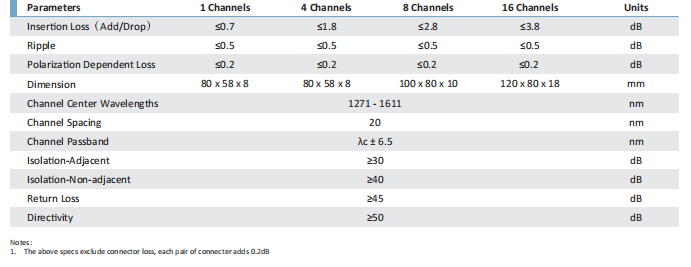

CWDM Products specification

Description
Dense wavelength division multiplexer (DWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

超紧凑型LAN-WDM

北亿纤通专业研发生产(全国产化可选):超紧凑型LAN-WDM, 超紧凑型LAN-WDM海量交付给国防、军工、航空、航天、兵器、舰船、雷达、电子、核工业、军事、电力、铁路、医疗、交通、通信、电信、政府、国防科技工业系统内大专院校及科研院所
