10G SFP+ Passive Copper Cable Assembly
Description
10G SFP+ Passive Copper Cable Assembly
Product Description
The passive SFP+ Direct attach copper cable assembly is a low cost alternative for short reach applications. The design allows for a serial data transmission up to 12Gbps in each direction. The passive design has no signal amplification in the cable assembly. Electronic Dispersion Compensation (EDC) is typically used on host board designs when passive copper cable assemblies are utilized. EDC allows for an extended length of passive cable assemblies. EEPROM signature enables the host to differentiate between a passive copper cable assembly and a fiber optic module. The mechanical design of the braid crimp and EMI skirt ensure that EMI radiation is sufficiently suppressed. Additionally, the copper cable acts as a natural heat sink. The low power consumption assists in making the passive copper cable assembly an economic solution for within rack or rack-to-rack applications.
Features
● SFF-8431 Compliant
● Data rate operation:10 Mbps to 12 Gbps
● 100 Ohm differential impedance
● Retractable pin latch
● EEPROM signature
● Pull to Release latch design
● Enhanced EMI skirt design
● Color options for strain relief and pull tab
● AC-coupled inputs and outputs
● 30AWG to 24AWG cable available
● RoHS Compliant
Applications
● 10 Gigabit Ethernet and Gigabit
● Ethernet (IEEE 802.3ae)
● Fiber Channel: 1, 2, 4, 8, and 10GFC
● Infiniband SDR, DDR, and QDR
● Fiber Channel over Ethernet (FCoE)
● Serial data transmission

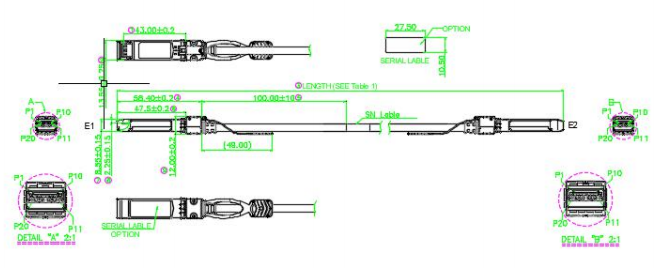

Mechanical Dimensions

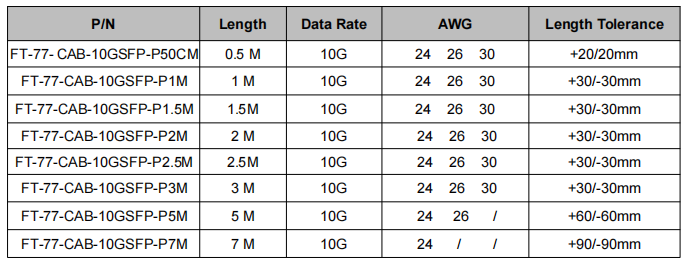

Part Number Ordering Information
注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
