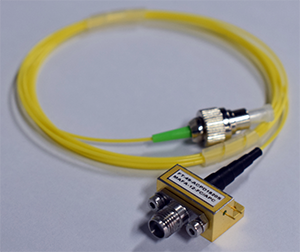

分光探测器TAP PD

Feathure

● High Responsivity Low Dark Current

● Wide Passband

● High Stability and Reliability

● Epoxy Free Optical Path

Application

● Optical Amplifier

● Optical Networks

● Power Monitoring

● Fiber Sensor

● Lab

Specification

Parameter

Unit

Value

Operating wavelength

nm

1260~1620

C-band

Tap Ratio

%

1%

2%

5%

10%

Insertion Loss

dB

0.4

0.5

0.6

0.9

Responsivity

mA/W

6~15

12~25

30~65

60~120

Return Loss

dB

≥40

Dark Current

(VR=5V, 70°C)

Bandwidth=2G

 nA

≤2.5

Bandwidth=0.5G

≤10

Capacitance

(VR=5V, 1MHz)

Bandwidth=2G

 pF

≤1

Bandwidth=0.5G

≤8

Fiber Type

-

SMF-28 Fiber

Max. Optical Power on PD

mW

10

Operating Temperature

°C

0~70

Storage Temperature

°C

-40~85

Soldering Temperature

°C

≤260 (<5s, over 2mm from head)

Absolute Max Reverse Voltage

V

20

Note:

1. Specifications are for device without connectors; Specifications may change without notice.

2. To add connectors, RL is 5dB lower.

Package Dimensions

Pin Descriptions







Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
