带温控全集成模拟光发模块

特点
◆超小体积 30mm*8.4mm*7mm
◆超低功耗
◆+5V 单电源工作
◆可集成射频放大
◆支持 ITU C 波段
◆超宽的工作频率范围 10MHz～18GHz
◆自动温度控制（ATC）功能和光功率告警功能
◆平坦的频率响应
◆大动态范围
◆出色的 EMC/EMI 设计

运用
◆光源
◆天线拉远
◆光纤延迟线
◆分布式天线系统
◆宽带无线通信
◆OFDM 光纤传输系统

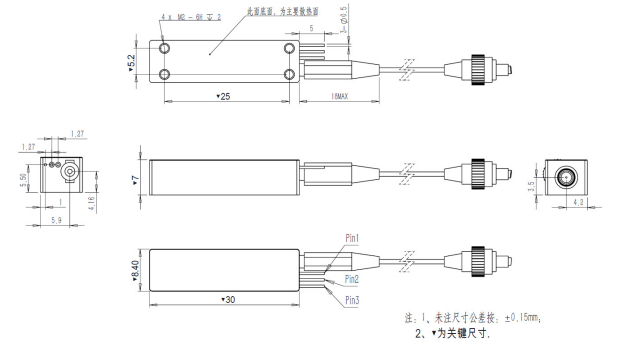

机械结构 (单位: mm)

说明：模块请用 M2 的螺钉安装，具体的螺钉长度请根据使用条件决定。

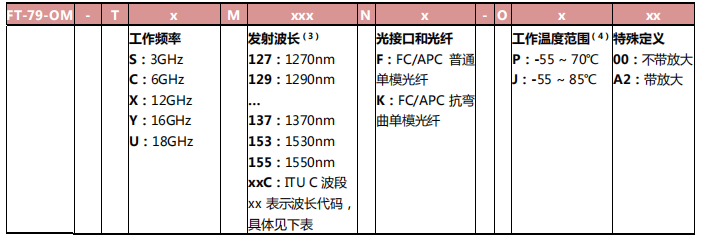

订购信息

注：本产品有全国产化型号可选

本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
