电动光纤偏振控制器

电动光纤偏振控制器

3.0/5 rating (2 votes)

Description

电动光纤偏振控制器

电动偏振控制器是控制单模光纤产生各种偏振态的一种有效的工具,通过驱动器提供 4 路直流电压,电压在+/-5V 交替变化,用来动态的控制单模光纤的偏振态.5V 的直流电压提供给偏振控制器内部的光纤挤压装置,该装置会对光纤产生超过 25N 的应力,足可以使偏振态在 360 度的范围内变化.电动偏振控制器内部的3个光纤挤压装置分别和相邻的光纤挤压装置有 45 度角的偏差

 产品特点:
● 插入损耗可忽略
● 回波反射可忽略
● 偏振相关损耗可忽略
● >100Hz 的响应速度
● 偏振态连续可控
● 低电压驱动应用领域:扰偏或者偏振控制
● 偏振稳定
● 缓和偏振模式色散(PMD)
● 缓和偏振相关损耗(PDL)
● PDL 和 PMD 测量系统

工作温度(多种温度级别可选):
● 商用级:0~+7度
● 扩展级:-10~+80度
● 工业级:-40~+85度
● 军品级:-55~+85度

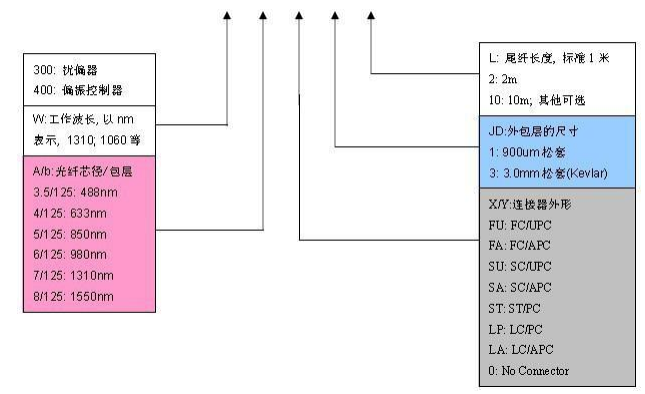

149 2











Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
