CXCH-01系列圆形电连接器

CXCH-01系列圆形电连接器

0.0/5 rating (0 votes)

Description

CXCH-01系列圆形电连接器

产品简介
CXCH-01系列电连接器为xc系列的扩展产品,主要技术性能符合GJB2889标准,根据顾客要求,增加壳体壁厚,提高产品机械强度,其连接方式为卡口式快递连接和分离,操作方便,连接牢靠,抗振耐冲。壳体材料为高强度铝台金。接触件有焊接式,其中插孔为线简插孔,具有插拔柔和、接触电阻小、防潮、防震雾、防霉菌、防淋雨等特性,主要应用于舰船、邮电通讯、铁路指挥系统、航海和各种仪器、仪表的线路连接。

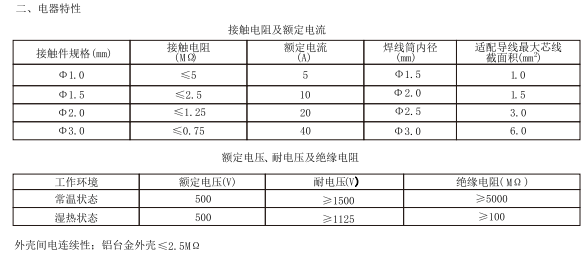

产品技术特性
使用环境条件
工作温度:-55℃~+125℃
                -55℃~+200℃(订货时标明)
相对湿度:40℃±2℃时,90%~95%
振动:频率10Hz-2000Hz,速度196m/s²
冲击:加速度980m/s²
恒加速度:980m/s²
工作高度:≤30000m
机械寿命:插拔≥1000次

C95C95C95













 本产品为FT-BH系列圆形电连接器,如有需要,请联系我们。
