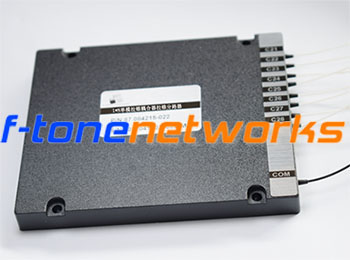

CCWDM Module
Description
产品特点：
● 低插入损耗
● 高隔离度
● 高稳定性和可靠性
产品应用：
● 光路监控
● 波分复用系统
● 传输网/接入网
|
参数 |
指标 |
|||||
|
4 |
8 |
8+Exp1 |
8+Exp2 |
18 |
||
|
工作波长（nm） |
1260～1620 or 1261~1621 |
|||||
|
通道间隔（nm） |
20 |
|||||
|
带宽（nm） |
通道端 |
±6.5 |
||||
|
升级端 |
1310±50 |
1260~1458 |
||||
|
插入损耗（dB） |
通道端 |
1.0 |
1.5 |
1.5 |
1.5 |
3.0 |
|
升级端 |
1.2 |
1.2 |
||||
|
隔离度（dB) |
相邻通道 |
≥30 |
||||
|
非相邻通道 |
≥40 |
|||||
|
升级端 |
≥15 |
|||||
|
光纤类型 |
SMF-28e，G657A1 |
|||||
|
偏振相关损耗（dB） |
≤0.2 |
|||||
|
偏振模色散（PS） |
≤0.1 |
|||||
|
方向性（dB） |
≥50 |
|||||
|
回波损耗(dB) |
≥45 |
|||||
|
最大光功率（mW） |
500 |
|||||
|
工作温度（℃） |
-10～75 |
|||||
|
存储温度（℃） |
-40～85 |
|||||
|
封装尺寸（mm） |
8+1CH：L44×W25×H6 或 L54×W32×H7.4 18CH：L50×W50×H6 |
|||||
