描述
手动可调滤光器，用于手动调整 1550 nm（C 波段）区域的中心波长。最大可调范围超过 15 nm。该滤波器基于通过精确测微头压缩 FBG（光纤布拉格光栅），可实现 70 pm 的微调分辨率。

特征
● 手动可调滤光片
● 可调范围 > 15 nm
● C 波段可选中心波长手动调节 (1520 – 1570 nm)
● FWHM 可选 0.2 – 0.5 nm
● 微调分辨率 70 pm

应用
● 波长选择形成宽带光源。
● 噪声抑制，例如在 EDFA 放大器和具有可调波长的传输系统中。
● 电信 - WDM 系统中的信道选择。
● 专为实验室和测试目的而设计。

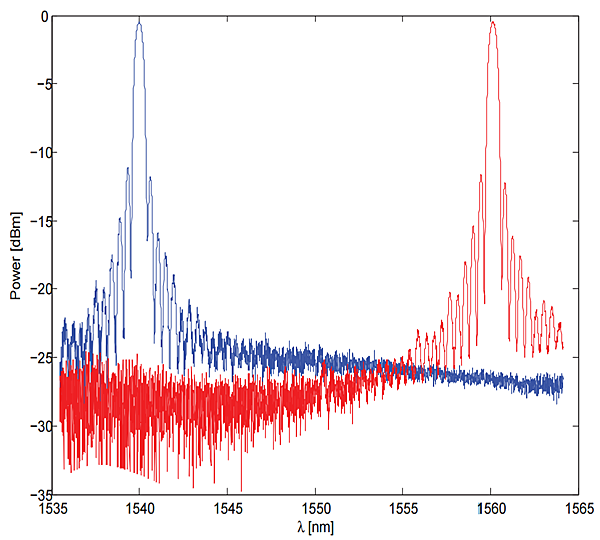

光学参数

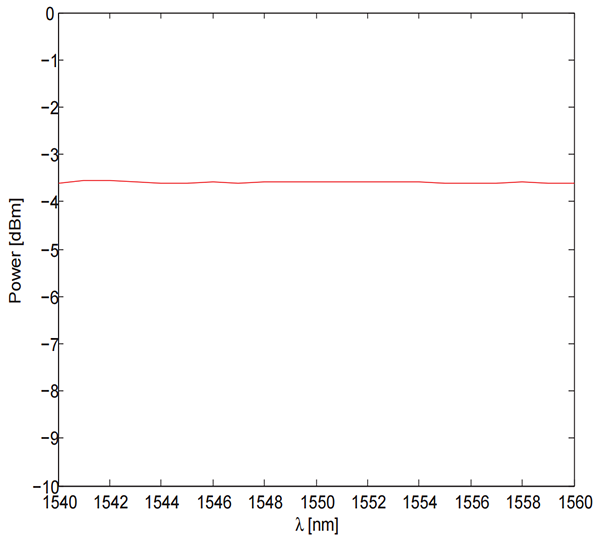

光谱波长相关性

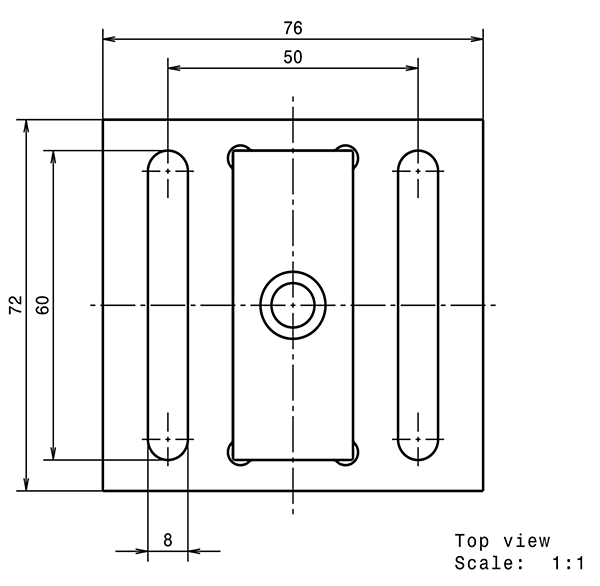

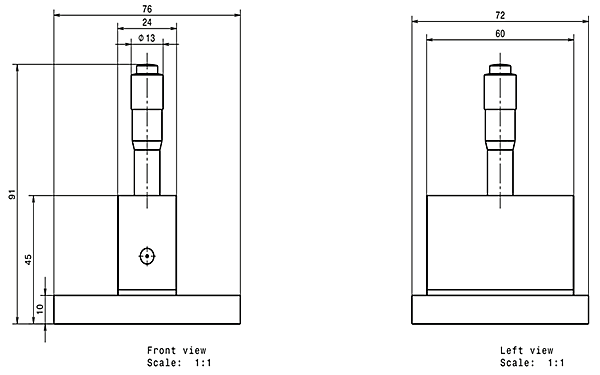

机械尺寸

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
