Polarization Maintaining Circulator (1X2-1310/1550nm)

Features:
●  Low insertion loss
    ●  High extinction ratio
● High Return Loss
● Excellent environmental stability
       and reliability

Applications:    ●  Fiber Laser    ●  Fiber Sensor    ● Communication System    ● Test Instrumentations    ● Polarization maintaining optical system

   ● Telcordia GR-1209-CORE
   ● Telcordia GR-1221-CORE
   ●  RoHS

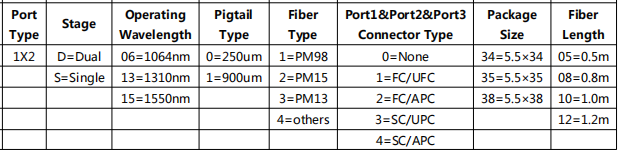

 Product Ordering information:FT-45-PMCIR

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
