Polarization Maintaining Filter Wavelength Division Multiplexer

Features:
● Low insertion loss
● High extinction ratio
● High Return Loss
● Excellent environmental stability
       and reliability

Applications:  ● Fiber Laser  ● Fiber Sensor  ● Communication System  ● Test Instrumentations  ● Polarization maintaining                  optical system

Compliance:
 ● Telcordia GR-1209-CORE
 ● Telcordia GR-1221-CORE
 ● RoHS

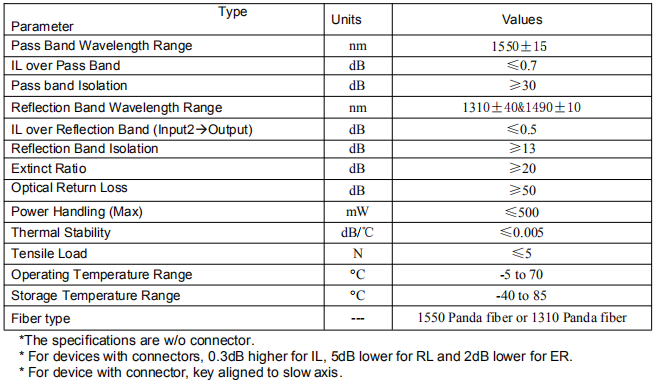

Specifications:

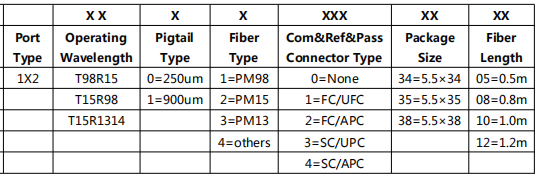

 Product Ordering information:FT-45-PMFWDM

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
