800G QSFP112-DD ACC（4m）

800G QSFP112-DD ACC（4m）

0.0/5 rating (0 votes)

Description

800G QSFP112-DD ACC（4m）

产品描述
北亿纤通的800G QSFP112-DD ACC有源直接铜缆用于数据中心内部的机架内或机架间的互连，符合IEEE 802.3ck 800GBASE-CR8以太网传输协议，同时兼容InfiniBand NDR传输协议。该系列产品使用16对同轴电缆传输8x 100G PAM4信号，距离最高可达4m。

产品特性
● 采用QSFP-DD可热插拔封装模块同轴电缆组件
● 8通道100G PAM4调制
● 每通道传输速率最高可达106.25Gbps
● 符合QSFP-DD MSA、CMIS和IEEE 802.3ck 800GBASE-CR8以太网传输协议
● 兼容InfiniBand NDR传输协议
● 线缆长度最大可定制4m
● 误码率（BER）优于1E-15
● 接近零的功耗
● I2C管理接口
● 电源电压3.3V
● LSZH（低烟无卤）的线缆外层材质
● LF（无铅）HF（无卤素）的PCB
● 符合RoHS环保标准（无铅）

产品参数
产品类型：直连铜缆（DAC）
应用场景：数据中心
传输速率：800G
传输协议：Ethernet, InfiniBand
封装类型：QSFP-DD

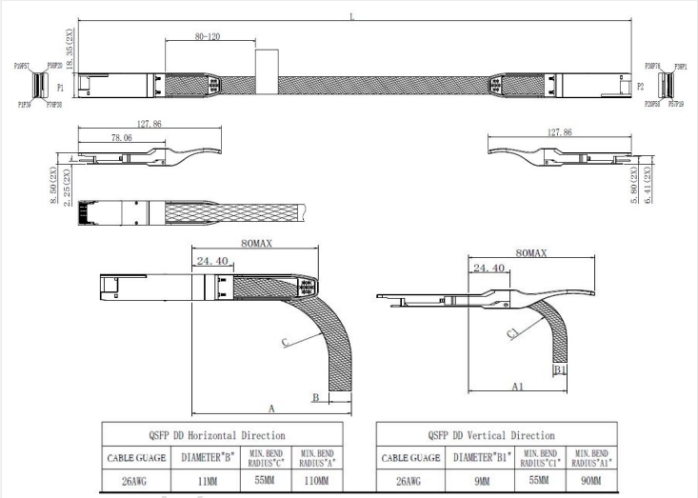

产品尺寸94













本产品为FT-Y1系列，仅展示部分参数，如有需要，请联系我们。
注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
