780 850nm 1X2(2X2)保偏光纤耦合器（FBT）

熔融拉锥保偏光纤耦合器（也称拉锥分路器，FBT Coupler）,能使在光纤中传输的,光信号在特殊结构的耦合区发生耦合,进行光功率的再分配,可以根据需要实时监控,制作不等分分光器,有单窗,双窗和三窗等多种形式,熔融拉锥分路器广泛用于光纤激光器、通信系统和光纤到户中.产品通过Telcordia,GR-1221-CORE 试验,符合 RoHS 要求.

工作温度（多种温度级别可选）:
商用级：0~+7度
扩展级：-10~+80度
工业级：-40~+85度
军品级：-55~+85度

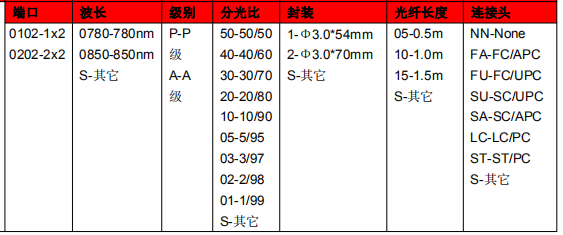

 订购信息:FT-45-LTPMFBT

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
