6芯水密连接器

6芯水密连接器

5.0/5 rating 1 vote

Description

6芯水密连接器

产品简介

六芯水密防水光纤连接器采用三头螺纹快速连接,同时采用定位系统,有盲插和防错插及抗振功能,连接器采用不锈钢 316L材质、接触件密度高、抗电磁屏蔽功能,光纤组件可拆卸,方便安装使用,连接器损耗小、可靠性高;具有防水、耐腐蚀等特点。

目前规格有:4 芯,6 芯等


主要用于

水下光信号传输


连接器产品参数

插损 单模   ≤1.0dB
多模   ≤0.75dB
回损  单模   ≥50dB
机械性能 插头   ≤1000N(主缆)
插座 ≤100N(分支光缆)
使用温度 -40℃~85℃
防护等级 IP67

配套光缆参数

光缆直径   4.0mm 7.0mm (或其它指定尺寸)
护套材料   LSZH(或 TPU)
抗拉单元   KEVLAR
光纤类型   9/125、50/125、62.5/125
光纤外覆   900um紧套纤
抗拉力   短期:1200 常期:600N
使用温度   -40℃~85℃

 常用分支头


 常用连接方案

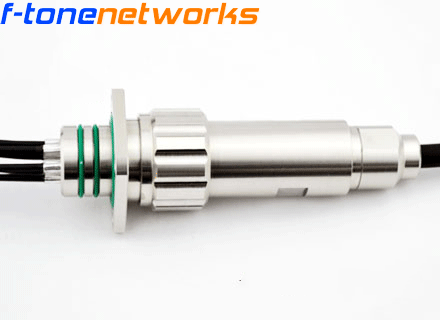

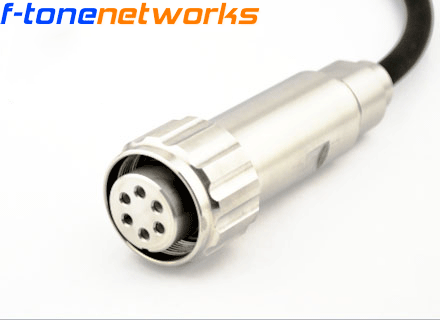

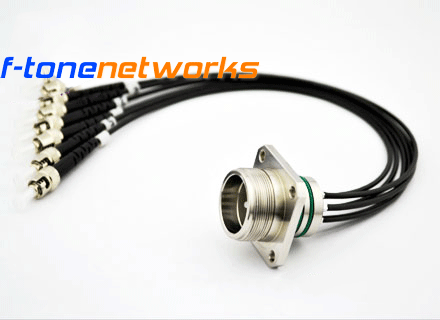

产品图片

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
