6GHz S-Mini Analog Optical Transceiver With Fiber(wA) DS

特点
● 超小体积 30mm*8.4mm*7mm
● 超宽的工作频率范围 100MHz～18GHz
● +5V 单电源工作
● 可集成射频放大
● 支持 ITU C 波段
● 自动温度控制（ATC）功能和光功率告警功能
● 平坦的频率响应
● 大动态范围
● 出色的 EMC/EMI 设计

运用
● 光源
● 天线拉远
● 光纤延迟线
● 分布式天线系统
● 宽带无线通信
● OFDM 光纤传输系统

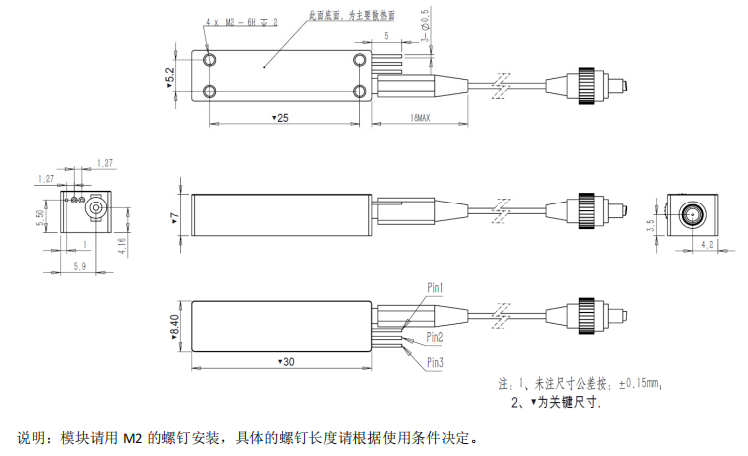

机械结构 (单位: mm)

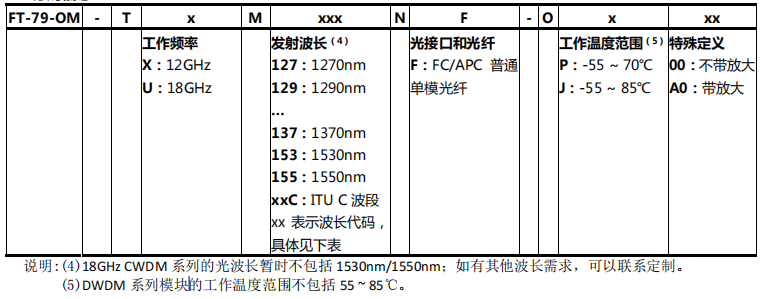

订购信息

注：本产品有全国产化型号可选

本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
