(6+1)×1 光纤合束器
Description
(6+1)×1 泵浦合束器专门设计用来应用于高功率光纤激光器，光纤放大器领域，将6 路泵浦能量和1 路信号能量合成进入单根双包层光纤，实现泵浦能量和信号能量在同一根光纤中传输。
产品应用
● 光纤激光器
● 光纤放大器
● 光学仪器等
产品特点
● 高泵浦耦合效率
● 高稳定性
● 低插损

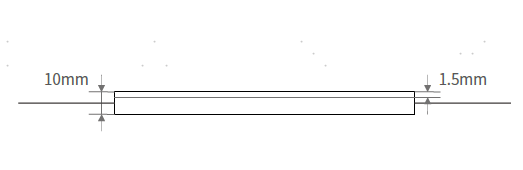

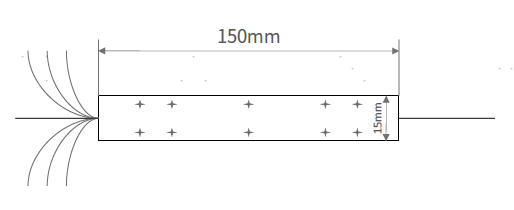

外观尺寸
规格参数
| 产品类型 | FT-AE-MPC3-P13-S699 | ||||
|---|---|---|---|---|---|
|
参数 |
指标 | ||||
| 泵浦光工作波长(nm) | 800 ~ 1000 | ||||
| 输入泵浦端 | |||||
| 芯/包直径(μm) | 200/220 | ||||
| 数值孔径 | 0.22 | ||||
| 输入信号端 | |||||
| 光纤类型 | GDF-DC20/400-0.065 | ||||
| 输出端 | |||||
| 光纤类型 | GDF-DC20/400-0.065 | ||||
| 光学性能 | |||||
| 泵浦效率 | ＞97% | ||||
| 信号光插损(dB) | ＜2dB | ||||
| 单臂承受功率(W) | 400W | ||||
| 环境性能 | |||||
| 工作温度(℃) | -5 ~ +70 | ||||
| 工作湿度 | 5% ~ 85% | ||||
| 存储温度(℃) | -40 ~ +85 | ||||
| 外观 | |||||
| 封装尺寸(mm) | 10×15×150 | ||||
| 尾纤长度(m) | 1.0 | ||||
*光纤类型可定制
