53G SFP56 Active Optical Cable (FTCS-50G-CS-Oxxx)

53G SFP56 Active Optical Cable (FTCS-50G-CS-Oxxx)

0.0/5 rating (0 votes)

Description

Description
The F-tone Networks Technologies FTCS-50G-CS-Oxxx is a single-Channel Active Optical Cable for 26.5625GBd PAM4 Ethernet Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. This module incorporates F-tone Networks Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features
● full-duplex transceiver modules
● Transmission data rate up to 53Gbps per channel
● 53Gbps PAM4 transmitter and PAM4 receiver
● 850nm VCSEL array
● PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Power consumption <2W
● Hot Pluggable SFP form factor and Compliant with SFF-8431,SFF-8472
● Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● IEEE 802.3cd 50GBASE-SR

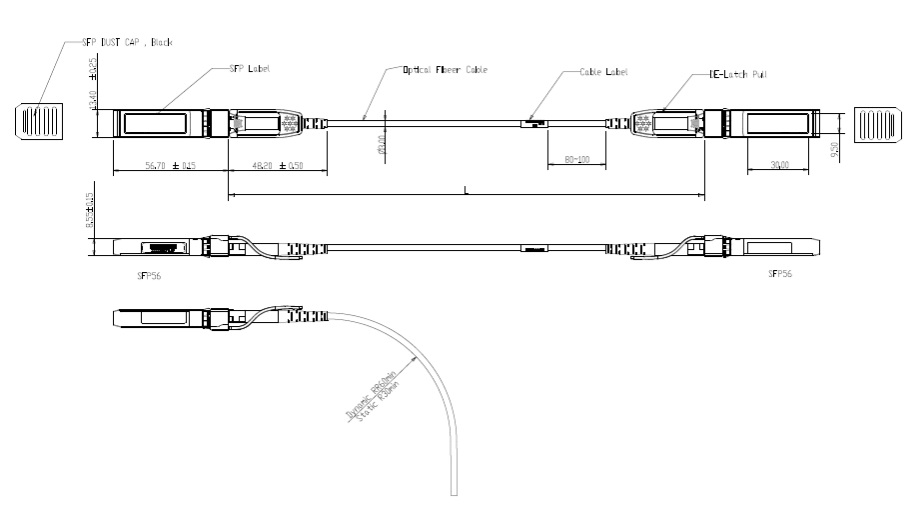

Mechanical DimensionsFTCS 50G CS Oxxx

Ordering information

Part Number

Product Description

FTCS-50G-CS-Oxxx

53.125Gbps, 850nm; SFP56 Active Optical Cable; 0ºC ~ +70ºC

FTCS-50G-CS-OxxxI

53.125Gbps, 850nm; SFP56 Active Optical Cable; -40ºC ~ +85ºC

xxx :001~070,1~70 Length in meters on OM3 MMF

xxx :001~100,1~100 Length in meters on OM4 MMF

Further details are available from any F-tone Networks sales representative.













本产品为25G~400G高速光模块系列，如有需要，请联系我们。

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
