400Gb/s to 2x200Gb/s QSFP-DD to 2xQSFP56 MMF AOC
Description
400Gb/s to 2x200Gb/s QSFP-DD to 2xQSFP56 MMF AOC
Features
● 400Gb/s to 2x200Gb/s data rate
● 8x 50Gb/s PAM4 modulation

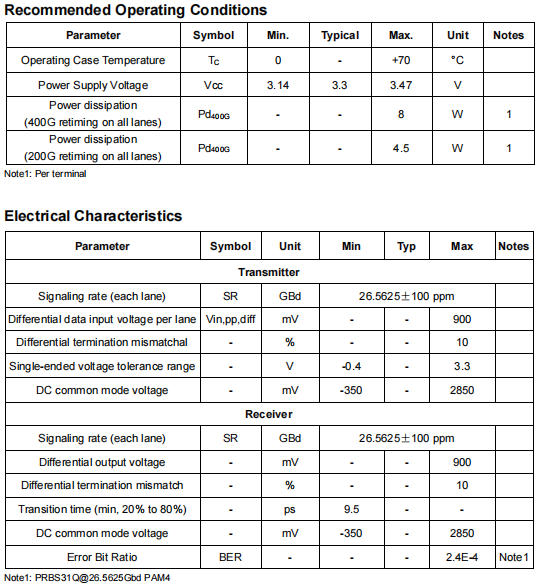

● Single 3.3V power supply
● Max 4.5W power dissipation each QSFP56 end
● Max 8W power dissipation QSFP-DD end
● Compliant to CMIS V4.0
● Operating case temp Commercial: 0℃to +70℃
● Hot pluggable
● RoHS compliant
Applications
● 400Gb/s systems
● Other optical links
北亿纤通 | F-tone Networks
企业邮箱： sales@f-tone.com
企业手机：19081343401
企业电话：028-85255257
企业传真：028-85977702
本产品仅展示部分参数(77)，如有需要，请您联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
