4.25 Gbps 1X9 Single Mode Transceiver(10KM)

4.25 Gbps 1X9 Single Mode Transceiver(10KM)

0.0/5 rating (0 votes)

Description

4.25 Gbps 1X9 Single Mode Transceiver(10KM)

FEATURES
● Duplex FC Single-Mode Transceiver
● 1310 nm DFB-LD Transmitter
● 3.3V Power Supply
● LVTTL Signal Detection Output
● 10KM with 9/125 um SMF
● Industry Standard 1 x 9 Footprint
● Operating case temperature: -40℃~+85℃

APPLICATIONS
● Switch to Switch Interface
● High Speed Interface for File Servers
● High Performance Desktops

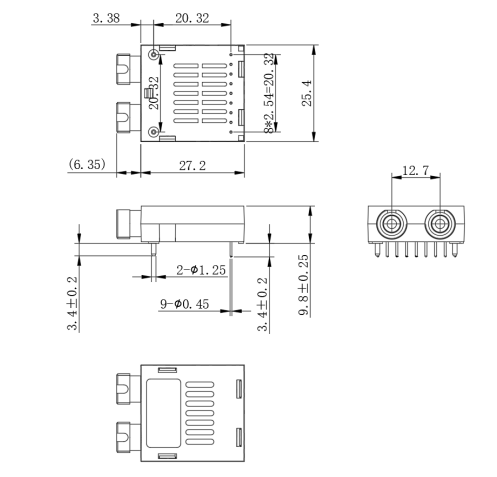

Mechanical Dimensions

67

Ordering Information

P/No.

Package

Bit Rate(Gb/s)

Dist.(km)

Wavelength(nm)

Volt.(V)

TX Power(dBm)

RX Sens(dBm)

Temp.(℃)

FTTR-1342-10I-E

FC

4.25

10

1310DFB

3.3

-8 to -3

-18

-40 ~ 85

1x9光模块-SM1310-4.25G-10KM-工业级(3.3V-Data:CML(交流耦合)-SD:LVTTL-FC 接头)













注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
