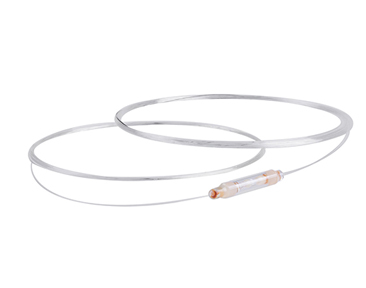

3端口 FWDM

0.0/5 rating (0 votes)

Description


146

产品介绍:
端口 FWDM器件主要用于无源波分复用模块，在波分复用系统内它能复用或者解复用不同的光信号，并增加信号传输速度和通信容量。



产品特性:
​● 优良的性能参数(满足低损耗高隔离的波分复用系统)
较低的插入损耗,使FWDM器件运用在波分复用系统里面时拥有较低的信号衰减,从而降低对信号发射器的功率要求。
● 高隔离度
较高的隔离度值,使FWDM器件运用在波分复用系统里面多信号传输时进行充分的信号隔离,有效防止信号之间 相互串扰导致传输信号失真。
● 成熟生产工艺
北亿纤通3端口FWDM器件具有成熟的生产工艺,光路采用无胶及半自动条件封装制作,性能稳定可靠,支持-40℃~+85℃ 的恶劣环境下工作,保证信号的稳定传输。
● 系统追溯、品质保证
北亿纤通自主研发的生产信息管理系统,每只产品均有完整的电子流程,确保器件的品质可靠性和追溯性。
● 符合国际标准
北亿纤通的3端口FWDM器件符合RoHS,满足TelcordiaGR-1209-CORE与GR-1221-CORE,也满足行业的168小时PCT可靠性实验。



产品规格:

参数 单位   3端口FWDM
工作波长 nm 1260~1670nm
透射带宽 nm 1540~1560 1524~1544&1596~1625​ 客户指定
反射带宽 dB 1260~1360&1480~1500 1260~1500&1550~1581&1640~1670 客户指定
透射插损 dB ≤0.6
反射插损 dB ≤0.4
透射隔离度 dB ≥30
反射隔离度 dB ≥15
回波损耗 dB ≥50
方向性 dB ≥50
纹波损耗 dB ≤0.3
封装尺寸 mm Φ4.0xL30mm；  MINI：Φ3.2xL30mm、Φ3.0xL30mm、Φ2.6xL25mm、Φ2.2xL25mm
工作温度 ℃ -40~+85
