3.125Gb/s SFP DWDM 120km 光模块

3.125Gb/s SFP DWDM 120km 光模块

0.0/5 rating (0 votes)

Description

3.125Gb/s SFP DWDM 120km 光模块

Description
F-tone’FTCS-Dxx31-H2Dxx transceivers include an APD photo-detector diode and temperature stabilized DWDM DML transmitter. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Features
● Up to 3.125Gb/s data links
● DWDM DML laser transmitter and APD photo-detector
● 100 GHz ITU channel spacing with integrated wavelength locker
● Up to 120km on 9/125µm SMF
● Hot-pluggable SFP footprint
● Duplex LC/UPC type pluggable optical interface
● Low power dissipation
● Metal enclosure, for lower EMI
● RoHS compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF-8472
● Case operating temperature
         Commercial: 0 ~ +70oC
         Extended: -10 ~ +80oC
         Industrial: -40 ~ +85oC

Applications
● SONET/SDH networks
● Gigabit Ethernet
● C Band DWDM networks
● 1xFiber /2xFiber Channel

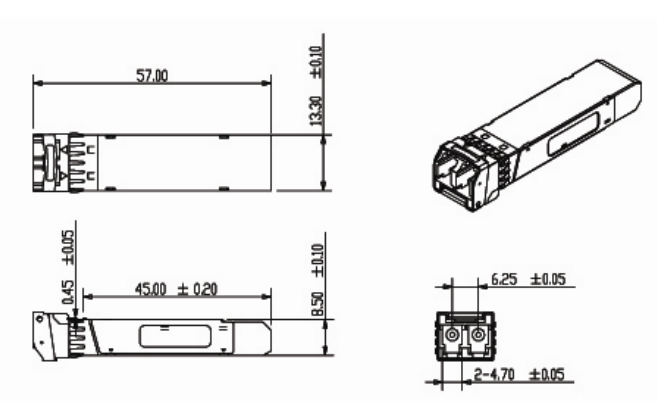

Mechanical Dimensions62

Part Number Ordering Information

Part Number

Product Description

FTCS-Dxx31-H2D

SFP-DWDM-3.125G-120KM-DDM,0°C~+70°C

FTCS-Dxx31-H2DE

SFP-DWDM-3.125G-120KM-DDM,-20°C~+70°C

FTCS-Dxx31-H2DE2

SFP-DWDM-3.125G-120KM-DDM,-10 to +80°C

FTCS-Dxx31-H2DI

SFP-DWDM-3.125G-120KM-DDM, -40 to +85°C

xx: Refer to wavelength selection

Wavelength Selection: C-band λc Wavelength Guide Pin Descriptions

Channel

Wavelength (nm)

Frequency (THZ)

Channel

Wavelength (nm)

Frequency (THZ)

C17

1563.86

191.70

C39

1546.12

193.90

C18

1563.05

191.80

C40

1545.32

194.00

C19

1562.23

191.90

C41

1544.53

194.10

C20

1561.42

192.00

C42

1543.73

194.20

C21

1560.61

192.10

C43

1542.94

194.30

C22

1559.79

192.20

C44

1542.14

194.40

C23

1558.98

192.30

C45

1541.35

194.50

C24

1558.17

192.40

C46

1540.56

194.60

C25

1557.36

192.50

C47

1539.77

194.70

C26

1556.55

192.60

C48

1538.98

194.80

C27

1555.75

192.70

C49

1538.19

194.90

C28

1554.94

192.80

C50

1537.40

195.00

C29

1554.13

192.90

C51

1536.61

195.10

C30

1553.33

193.00

C52

1535.82

195.20

C31

1552.52

193.10

C53

1535.04

195.30

C32

1551.72

193.20

C54

1534.25

195.40

C33

1550.92

193.30

C55

1533.47

195.50

C34

1550.12

193.40

C56

1532.68

195.60

C35

1549.32

193.50

C57

1531.90

195.70

C36

1548.51

193.60

C58

1531.12

195.80

C37

1547.72

193.70

C59

1530.33

195.90

C38

1546.92

193.80

C60

1529.55

196.00

Non-ITU

Peak wavelength between 1528.77nm-1563.86

C61

1528.77

196.10













注：本产品有全国产化型号可选
本产品为SFP DWDM系列光模块，仅展示部分参数，如有需要，请联系我们。
