2.67Gbps CWDM SFP Optical Transceiver, 80km Reach
Description
2.67Gbps CWDM SFP Optical Transceiver, 80km Reach
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 2.67Gbps and 80km transmission distance with SMF.The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
● Data-rate up to 2.67Gbps operation
● 8 CWDM DFB wavelengths laser and APD photodetector for 80km transmission
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Digital Diagnostic Monitoring:Internal Calibration or External Calibration
● Compatible with RoHS
● +3.3V single power supply
● Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
● SDH STM-16 and SONET OC-48 system
● 2X Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems

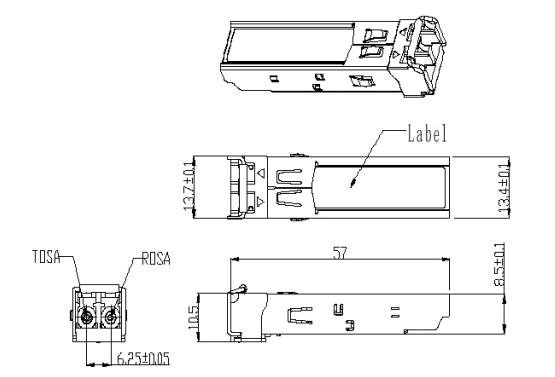

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-Cxx24-80D |
CWDM 1270nm~1610nm,2.67Gbps,80km, 0ºC ~ +70ºC,With Digital Diagnostic Monitoring |
|
FTCS-Cxx24-80DI |
CWDM 1270nm~1610nm,2.67Gbps,80km, -40ºC ~ +85ºC,With Digital Diagnostic Monitoring |
注：本产品有全国产化型号可选
本产品为SFP CWDM系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
