2×10 SFF 1.25Gbps DDM Transceiver Module
Description
2×10 SFF 1.25Gbps DDM Transceiver Module
Product Description
F-tone’s FTBF-xx12-xxx series of transceiver modules are the perfect solution for low -speed communication networks.These transceiver modules support data rates up to 1500Mbps. The module is fully compliant with the 2X10 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA).These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications.
Product Features
● VESEL/FP/DFB Laser Diode Transmitter
● Up to 2 Km on 62.5/125μm MMF，Up to 100 Km on 9/125μm SMF
● 3.3V power supply
● LC duplex optical interface
● (LV)PECL/CML Differential Inputs /Outputs and (LV)PECL or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● Fiber Channel Switch Infrastructure
● Gigabit Ethernet Switches and Routers
● Other optic links

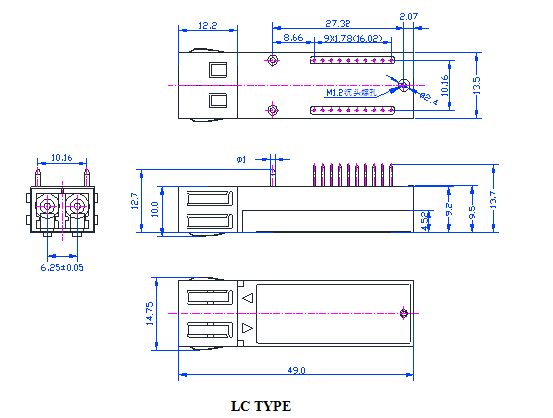

Mechanical Specifications
Ordering information
|
PN |
Description |
|
FTBF-8512-02D |
SFF2x10-MM850-1.25G-0.5KM-DDM商业级(0~70°C) |
|
FTBF-M1312-02D |
SFF2x10-MM1310-1.25G-2KM-DDM商业级(0~70°C) |
|
FTBF-1312-10D |
SFF2x10-SM1310-1.25G-10KM-DDM商业级(0~70°C) |
|
FTBF-1312-20D |
SFF2x10-SM1310-1.25G-20KM-DDM商业级(0~70°C) |
|
FTBF-1312-40D |
SFF2x10-SM1310-1.25G-40KM-DDM商业级(0~70°C) |
|
FTBF-1312-60D |
SFF2x10-SM1310-1.25G-60KM-DDM商业级(0~70°C) |
|
FTBF-1512-20D |
SFF2x10-SM1550-1.25G-20KM-DDM商业级(0~70°C) |
|
FTBF-1512-40D |
SFF2x10-SM1550-1.25G-40KM-DDM商业级(0~70°C) |
|
FTBF-1512-60D |
SFF2x10-SM1550-1.25G-60KM-DDM商业级(0~70°C) |
|
FTBF-1512-80D |
SFF2x10-SM1550-1.25G-80KM-DDM商业级(0~70°C) |
|
FTBF-1512-H0D |
SFF2x10-SM1550-1.25G-100KM-DDM商业级(0~70°C) |
|
|
|
|
FTBF-8512-02DI |
SFF2x10-MM850-1.25G-0.5KM-DDM工业级(-40~85°C) |
|
FTBF-M1312-02DI |
SFF2x10-MM1310-1.25G-2KM-DDM工业级(-40~85°C) |
|
FTBF-1312-10DI |
SFF2x10-SM1310-1.25G-10KM-DDM工业级(-40~85°C) |
|
FTBF-1312-20DI |
SFF2x10-SM1310-1.25G-20KM-DDM工业级(-40~85°C) |
|
FTBF-1312-40DI |
SFF2x10-SM1310-1.25G-40KM-DDM工业级(-40~85°C) |
|
FTBF-1312-60DI |
SFF2x10-SM1310-1.25G-60KM-DDM工业级(-40~85°C) |
|
FTBF-1512-20DI |
SFF2x10-SM1550-1.25G-20KM-DDM工业级(-40~85°C) |
|
FTBF-1512-40DI |
SFF2x10-SM1550-1.25G-40KM-DDM工业级(-40~85°C) |
|
FTBF-1512-60DI |
SFF2x10-SM1550-1.25G-60KM-DDM工业级(-40~85°C) |
|
FTBF-1512-80DI |
SFF2x10-SM1550-1.25G-80KM-DDM工业级(-40~85°C) |
|
FTBF-1512-H0DI |
SFF2x10-SM1550-1.25G-100KM-DDM工业级(-40~85°C) |
|
|
|
|
FTBF-1312-20DI-L |
SFF2x10-SM1310-1.25G-20KM-DDM工业级(-40~85°C) LOS(SD) PIN :(LV)TTL-Normal optical input levels to the receiver result in logic “0” output |
|
|
注：本产品有全国产化型号可选
本产品为FTBF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
