155Mbps Single Mode SFP Transceiver (60Km)

155Mbps Single Mode SFP Transceiver (60Km)

0.0/5 rating (0 votes)

Description

155Mbps Single Mode SFP Transceiver (60Km)

FEATURES
● Hot-Pluggable SFP Footprint LC Optical Transceiver
● Small Form-Factor Pluggable (SFP) MSA compatible
● Compliant with Fibre Channel 2x SM-LC
● AC/AC Coupling according to MSA
● Distance up to 60 km
● Single +3.3 V Power Supply
● RoHS Compliant
● Class 1 Laser International Safety Standard
● IEC-60825 Compliant
● Operating Temperature
       FTCS-1503-60 : 0℃~+70℃
       FTCS-1503-60I : -40℃~+85℃

APPLICATIONS
● 155 Mbps ATM/ Fast Ethernet
● Fibre Channel Switch Infrastructure

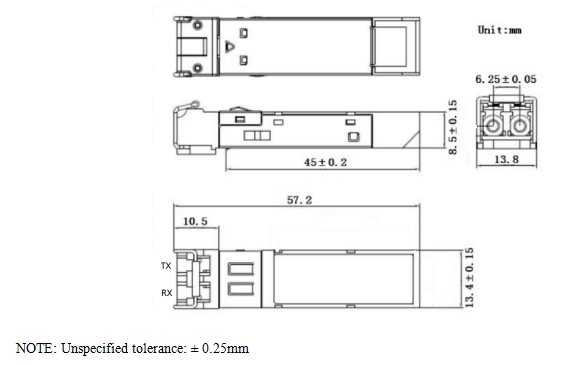

Mechanical Dimensions86

Ordering Information

P/No.

Package

Bit Rate

(Mb/s)

Dist.

(km)

Wavelength

(nm)

TX

Power

(dBm)

RX

Sens

(dBm)

Temp.

(℃)

FTCS-1503-60

LC

155

60

1550DFB

-5 to 0

-34

0 ~70

FTCS-1503-60I

LC

155

60

1550DFB

-5 to 0

-34

-40 ~85













注：本产品有全国产化型号可选
本产品为1.25G SFP系列光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
