1310nm脉冲激光器模块

1310nm脉冲激光器模块

0.0/5 rating (0 votes)

Description

产品简介

FT-COSC-PLS-1310-HS-MB系列1310nm脉冲光源模块设计用于超长距离OTDR、与光纤传感等领域。模块自带脉冲信号发生器与阻抗匹配驱动单元,通过直接调制半导体激光器使其工作在极窄的脉冲宽度(最小值10ns),且可根据客户要求调节脉冲宽度与脉冲重复频率。内置脉冲同步电路,在给出光脉冲信号时,同步电信号通过SMA接口输出,便于用户将模块植入系统。FT-COSC-PLS-1310-HS-MB系列模块内置驱动电路与逻辑控制电路,对激光器温度、模块温度等关键信息实时监测。模块可通过上位机配置工作参数。模块出厂预设状态参数依据具体订货型号或客户要求提供默认配置。

产品特点

窄脉冲宽度 (Min. 10ns)

高峰值脉冲光功率 (Max. 300mW)

高消光比 (Typ. 20dB)

脉冲宽度可调

脉冲重复频率可调

内置电同步电信号接口

内置光监控信号接口

支持外调制模式

温度波长锁定控制

提供订制设计与加工

应用领域

超长距离OTDR

光纤传感

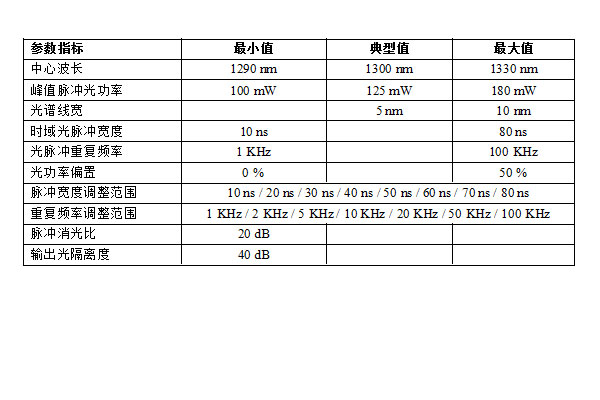

技术指标

46



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
