1250Mb/s SFP CWDM 160km Optical Transceiver Module

Description
F-tone Networks’FTCS-Cxx12-H6Dxx Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the CWDM DFB laser and the APD photo-detector .The module data link up to 160km in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Features
● Up to 1250Mb/s data links
● CWDM DFB laser transmitter and APD photo-detector
● Up to 160km on 9/125µm SMF
● Hot-pluggable SFP footprint
● Duplex LC/UPC type pluggable optical interface
● Low power dissipation
● Metal enclosure, for lower EMI
● RoHS compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF-8472
● Case operating temperature
      Commercial: 0 ~ +70℃
      Extended: -10 ~ +80℃
      Industrial: -40 ~ +85℃

Applications
● Switch to Switch Interface
● Gigabit Ethernet
● Switched Backplane Applications
● Router/Server Interface
● Other Optical Links

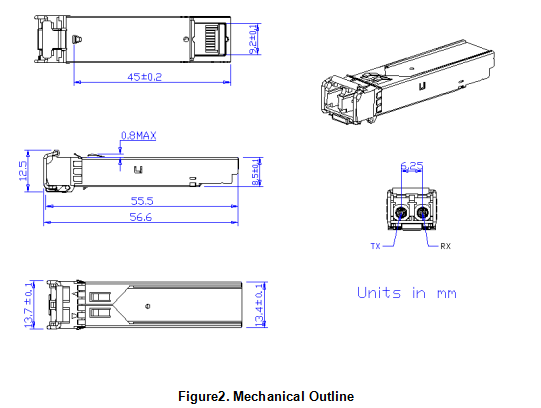

Mechanical Dimensions

Ordering Information

FTCS-Cxx12-H6Dxx Wavelength List:

注：本产品有全国产化型号可选
本产品为SFP CWDM系列光模块，如有需要，请联系我们。
