10Mb/s 单模双纤光收发一体模块

特点：
● SC/FC/ST或尾纤型光接口，单模双纤收发一体光模块
● +3.3V /+5V供电
● 接口电平兼容标准TTL电平和CMOS电平
● 标准1×9管脚封装
● 发射器件可选用1310nm FP LD
● 极低功耗设计，满足特殊要求
● 传输速率低至直流，上限速率可选，最高可达10Mb/s
Feature：
● SC/FC/ST receptacle optical interface and pigtail optical interface
● Single-mode Duplex fibers optical transceiver
● Standard +3.3V/ or +5V Power Supply
● Standard TTL data output with signal detect indication, compatible with CMOS level
● Standard1×9 package
● Transmit as MQW 1310nm FP LD
● Super low power consumption, applied to some special requirement
● Optional transmission bit rate with down to 0bps and up to 10Mbps

参数：Specification

极限值
Absolute Maximum Ratings

管脚定义

Pin Connections

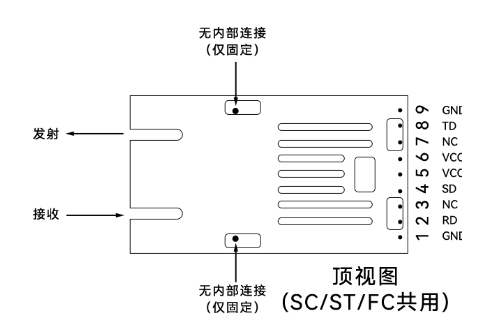

顶视图 Topview

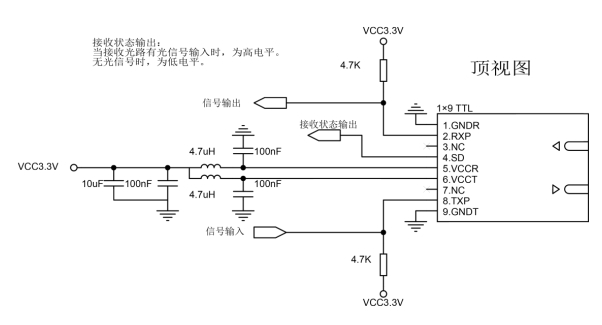

接口电路 Interface Circuit

外形尺寸及接口定义
Dimension and optical interface

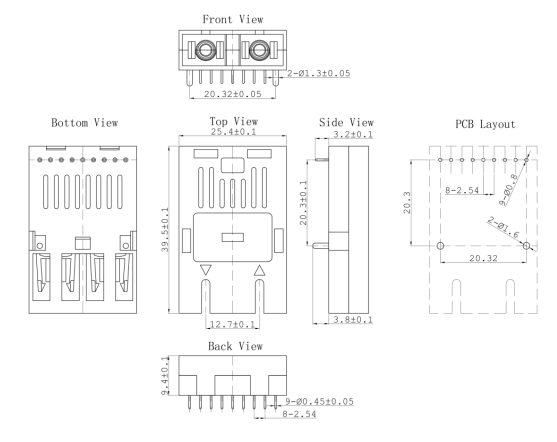

双纤SC型接口
Duplex SC optical interface

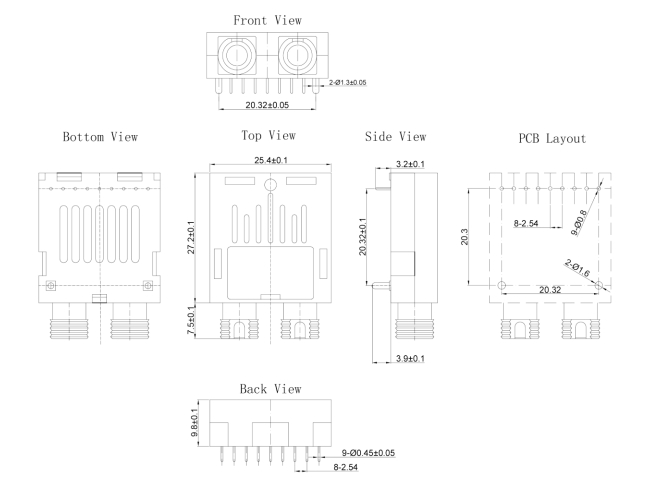

双纤 FC 型接口（工业级）
Duplex FC optical interface

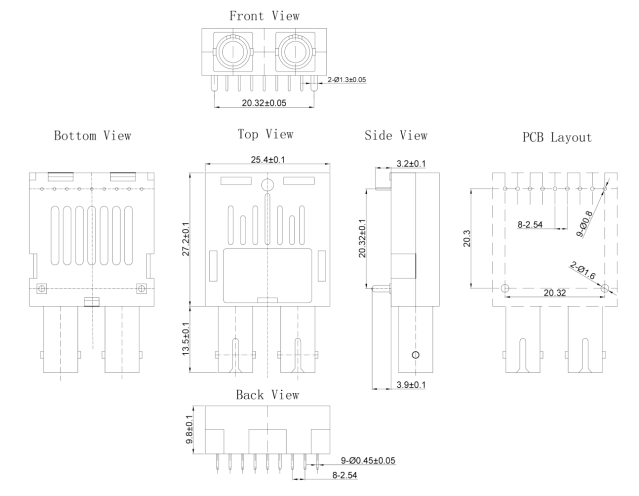

双纤ST型接口（工业级）
Duplex ST optical interface

选型Ordering information

备注：“GC”，表示全国产。
