10Gb/s 1310nm SFP+ 5km Transceiver, -40°C~+80°C
Description
10Gb/s 1310nm SFP+ 5km Transceiver, -40°C~+80°C
PRODUCT FEATURES
● Up to 11.1Gbps Data Links
● Up to 5km transmission on SMF
● FP Laser and PIN receiver
● Metal enclosure, for lower EMI
● 2-wire interface with integrated Digital Diagnostic monitoring
● Hot-pluggable SFP+ footprint
● Specifications compliant with SFF 8472
● Compliant with SFP+ MSA with LC connector
● Single 3.3V power supply
● Case operating temperature range:0°C to 70°C/-40°C to 85°C
● Power dissipation < 1.5W
APPLICATIONS
● 10GBASE-LR/LW & 10G Ethernet
STANDARD
● Compliant to 802.3ae 10GBASE-LR/LW
● Compliant to SFF-8431
● RoHS Compliant
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Storage Temperature |
Ts |
-40 |
- |
85 |
ºC |
|
|
Relative Humidity |
RH |
5 |
- |
95 |
% |
|
|
Power Supply Voltage |
VCC |
-0.3 |
- |
4 |
V |
|
|
Signal Input Voltage |
Vcc-0.3 |
- |
Vcc+0.3 |
V |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Case Operating Temperature |
Tcase |
0 |
- |
70 |
ºC |
Without air flow |
|
-40 |
- |
85 |
ºC |
|||
|
Power Supply Voltage |
VCC |
3.14 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
ICC |
- |
450 |
mA |
||
|
Data Rate |
BR |
10.3125 |
Gbps |
|||
|
Transmission Distance |
TD |
5 |
km |
|||
|
Coupled fiber |
Single mode fiber |
9/125um SMF |
||||
Optical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
NOTE |
|
Transmitter |
||||||
|
Output Opt. Power |
POUT |
-6 |
-0.5 |
dBm |
1 |
|
|
Optical Wavelength |
λ |
1260 |
1310 |
1355 |
nm |
|
|
Spectral Width (RMS) |
σ |
3 |
nm |
|||
|
Optical Extinction Ratio |
ER |
3.5 |
dB |
|||
|
Output Eye Mask |
Compliant with IEEE 802.3ae |
|||||
|
Receiver |
||||||
|
Rx Sensitivity |
PSEN |
-14.4 |
dBm |
2 |
||
|
Input Saturation Power (Overload) |
Psat |
0.5 |
dBm |
|||
|
Wavelength Range |
λC |
1270 |
1610 |
nm |
||
|
LOS De -Assert |
LOSD |
-17 |
dBm |
|||
|
LOS Assert |
LOSA |
-30 |
dBm |
|||
|
LOS Hysteresis |
0.5 |
1.0 |
dB |
|||
Notes:
- Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
- Measured with a PRBS 231-1 test pattern, @10.325Gb/s, BER<10-12 .
Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
NOTE |
|
Supply Voltage |
Vcc |
3.14 |
3.3 |
3.46 |
V |
|
|
Supply Current |
Icc |
450 |
mA |
|||
|
Transmitter |
||||||
|
Input differential impedance |
Rin |
100 |
Ω |
1 |
||
|
Differential data input swing |
Vin,pp |
180 |
1200 |
mV |
||
|
Transmit Disable Voltage |
VD |
Vcc–1.3 |
Vcc |
V |
||
|
Transmit Enable Voltage |
VEN |
Vee |
Vee+ 0.8 |
V |
2 |
|
|
Transmit Disable Assert Time |
10 |
us |
||||
|
Receiver |
||||||
|
Differential data output swing |
Vout,pp |
300 |
850 |
mV |
3 |
|
|
Data output rise time |
tr |
30 |
ps |
4 |
||
|
Data output fall time |
tf |
30 |
ps |
4 |
||
|
LOS Fault |
VLOS fault |
Vcc–1.3 |
VccHOST |
V |
5 |
|
|
LOS Normal |
VLOS norm |
Vee |
Vee+0.8 |
V |
5 |
|
|
Power Supply Rejection |
PSR |
100 |
mVpp |
6 |
Notes:
- Connected directly to TX data input pins. AC coupled thereafter.
- Or open circuit.
- Input100 ohms differential termination.
- These are unfiltered 20-80% values
- Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
- Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.

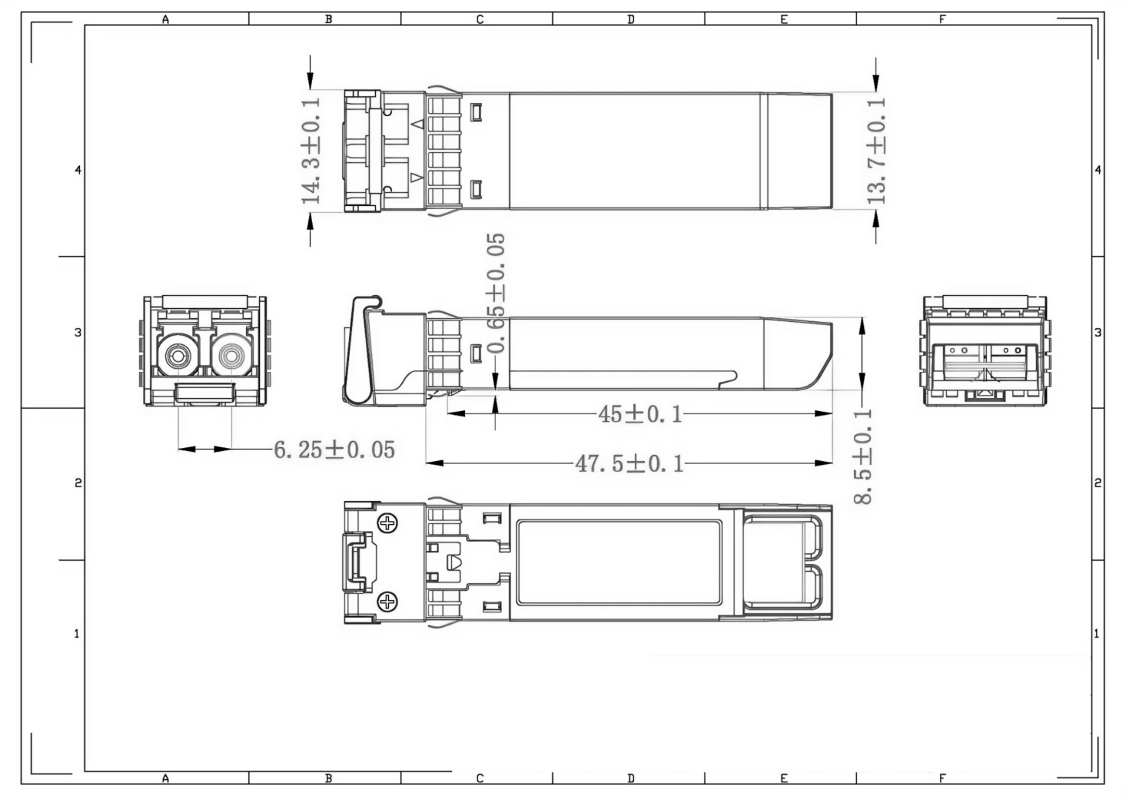

Outline Dimensions
Comply to SFF-8432 rev. 5.0, the improved Pluggable form factor specification.
Ordering information
|
Part Number |
Product Description |
|
FTJG-131X-05D |
SFP+ Transceiver, 1310nm, 10Gbps, 5km, with DDM, 0°C~+70°C, |
|
FTJG-131X-05DI |
SFP+ Transceiver, 1310nm, 10Gbps, 5km, with DDM, -40°C~+80°C, |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为SFP+系列光模块（V2），如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
