1064nm Polarization Maintaining Filter Coupler

1064nm Polarization Maintaining Filter Coupler

0.0/5 rating (0 votes)

Description

Polarization Maintaining Filter Coupler, 1064nm, 2X2 port
Specifications

Parameter

Unit

Values

Center Wavelength

nm

1064

Operating Wavelength Range

nm

± 20

Type

2x2

Max. Excess Loss

dB

0.8

Max. Uniformity(only for 50/50 type)

dB

0.6

Tap Ratio

%

1±0.2%,2±0.4%,5±1.0%, 10%, and 50%

Min. Return Loss

dB

≥50

Min. Extinction Ratio

dB

20

Max.Optical Power (Continuous Wave)

mW

300

Max. Tensile Load

N

5

Operating Temperature

-5 to +70

Storage Temperature

-40 to +85

Fiber Type

PM 980 Panda Fiber or HI1060 on Tap port

PM 980 Panda Fiber on Input & Output Port

*Above specifications.are for devices without the connectors

* For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

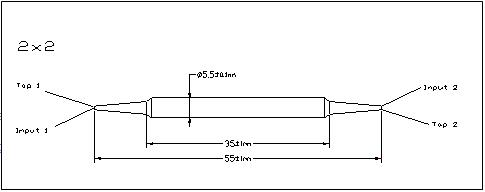

Package Dimensions59









Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
