100Gbps QSFP28 PSM4 10km Optical Transceiver Module (FTQ2-HG-PSMLR4I)
Description
Description
The F-tone Networks FTQ2-HG-PSMLR4I is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP 28 PSM4 for 100 or 40 Gigabit Ethernet, Infiniband DDR/EDR Applications. The transceiver is a high performance module for data communication and interconnect applications. It integrates four data lanes in each direction with 104 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses a 12 fiber MTP (MPO) connector. This module incorporates F-tone Networks proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.
Features
● 4 channels full-duplex transceiver modules
● Transmission data rate up to 26Gbps per channel
● 4 channels 1310nm DFB
● 4 channels PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Support CDR bypass
● Low power consumption <4.5W
● Hot Pluggable QSFP form factor
● Up to 10km reach for G.652 SMF
● Single male MPO(APC 8-degree) connector receptacle
● Operating case temperature -40°C to +85°C
● 3.3V power supply voltage
● RoHS compliant(lead free)
Applications
● 100G Ethernet links
● Infiniband DDR/EDR
● Datacenter and Enterprise networking

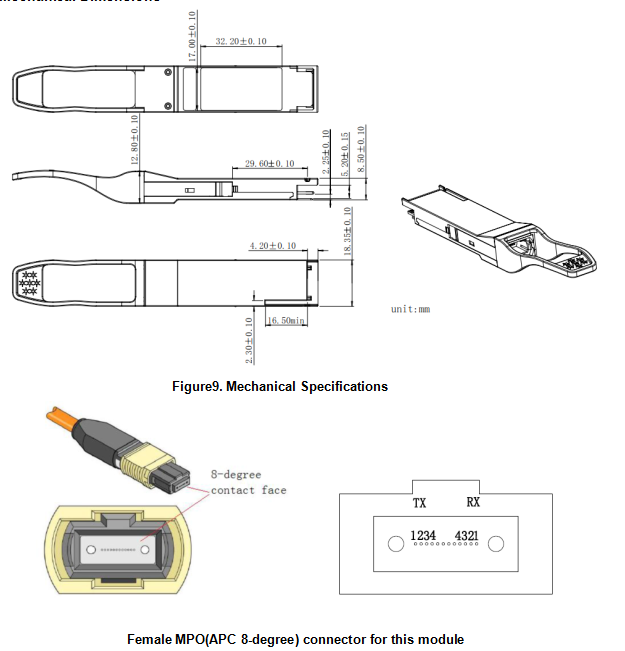

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTQ2-HG-PSMLR4I |
100Gb/s QSFP28 PSM4, MPO Connector, reach 10km on G.652 , -40~85℃ |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
