100G CFP to QSFP28 Adapter模块

100G CFP to QSFP28 Adapter

0.0/5 rating (0 votes)

Specifications

  • 产品型号: 100G CFP to QSFP28 Adapter
  • 兼容品牌: 全系列
  • 封装类型: 100G CFP to QSFP28 Adapter
  • 传输速率: 100G CFP to QSFP28 Adapter
  • 传输距离: 100G CFP to QSFP28 Adapter
  • 发射波长: 100G CFP to QSFP28 Adapter
  • 接收波长: 100G CFP to QSFP28 Adapter
  • 工作温度: 商业级0℃~+70℃/工业级-40℃~+85℃ 可选
  • 数字诊断: 100G CFP to QSFP28 Adapter
  • 接收灵敏度: 100G CFP to QSFP28 Adapter
  • 接收灵敏度: 100G CFP to QSFP28 Adapter

Description



100G CFP to QSFP28 Adapter:北亿纤通100G CFP to 100G QSFP28 Adapter转接器实现CFP接口(10X10Gbps)与QSFP28接口(4X25Gbps)双向转换,满足IEEE 802.3ba 100GBASE-LR4和IEEE 802.3bm 100GBASE-SR4协议,最大功耗低于4W,支持前向纠错编码(FEC)、数字诊断(DDM)功能。为100G以太网和电信网提供高性能、热插拔互联方案。 经验证,采用100m OM4多模光纤进行传输,该模块实测功耗低于2.3W,并成功实现4小时连续工作零误码。

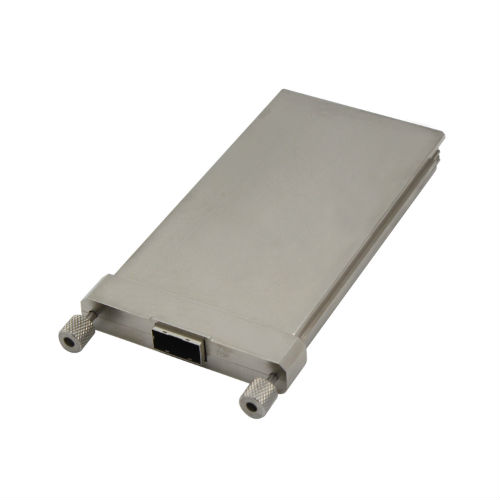

CFP-QSFP28-2

The 100G CFP to QSFP28 Adapter module is a high performance, hot pluggable, and interconnect solutionsupporting 100G Ethernet and Telecom. The Adapter converts a CFP MSA interface to 1-port of 100GE QSFP28.It is compliant with the CFP MSA. F-toneNetworks  100G CFP to QSFP28 Adapter module converts 10 bidirectional 10G channels to 4 bidirectional 25G channelsoperating at up to 28Gbps per channel.The Adaptersupports FEC (Forward Error Correction) function; the user can enable the FEC function through the register configuration.

功能特性

· Compliant to CFP Hardware Specification Version 1.4
· Compliant to CFP MSA Management Interface Specification Version 2.2
· Converts 10 bidirectional 10G lanes to4 bidirectional 25G lanes
· 1 port QSFP28 TX&RX
· Support 100G IEEE 802.3bj NRZ FEC
· Transmission data rate up to 28Gbps per channel
· OTU4 compatible
· MDIO digital diagnostic interface and control capabilities
· Power class 1 (<4W max)
· Hot pluggable electrical interface
· Operating case temperature:0°C~ +70°C
· Single 3.3V power supply
· RoHS 6 compliant(lead free)
应用
· 100GBE interconnects, IEEE 802.3ba 100GBASE-LR4(Adapter+QSFP28_LR4), IEEE 802.3bm 100GBASE-SR4(Adapter+QSFP28_SR4)
· High-speed core router connections& Datacom/Telecom switch
· Data aggregation and backplane applications
· Proprietary protocol and density applicationne
· High-speed core router connections& Datacom/Telecom switch
· Data aggregation and backplane applications
· Proprietary protocol and density application


Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
