10/100/1000 BASE-T SFP 电模块

10/100/1000 BASE-T SFP 电模块

0.0/5 rating (0 votes)

Description

该模块为 10/100/1000 BASE-T电口 SFP收发器，是高性能、低成本的模块符合IEEE802.3-2002和IEEE802.3ab中规定的千兆以太网和1000BASE-T标准，它支持1000Mbps数据速率，通过非屏蔽双绞线5类电缆传输距离可达到100米
该模块支持具有5电平脉冲幅度调制（PAM）信号的1000 Mbps全双工数据链路，电缆有四对线，每对线的符号速率为250Mbps。该模块提供标准的符合SFP MSA的串行ID信息，可通过2线串行CMOS以A0h地址访问EEPROM协议。物理IC也可以通过地址ACh处的2线串行总线访问。

产品特点
● 传输速率1.25Gbps；
● 支持热插拔；
● 低损耗；
● 紧凑RJ45连接器；
● EEPROM包含产品信息；
● 单3.3V 电源输入；
● I2C 访问；
● 10/100/1000 BASE-T operation in host
● systems with SGMII interface；
● SFP封装；
● 符合RoHS标准

产品应用
● 1.25 Gigabit Ethernet over Cat 5 cable
● Switch/Router to Switch/Router Link

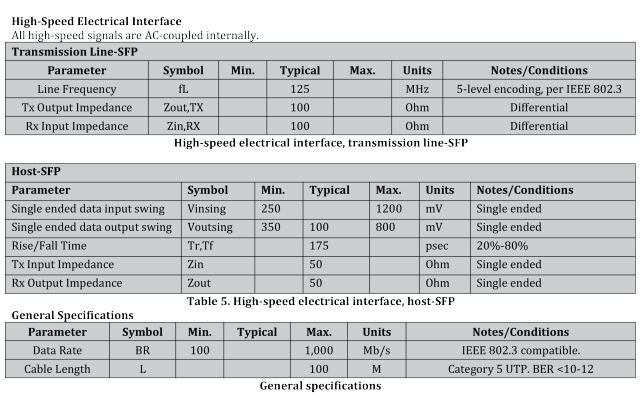

10 100 1000 BASE T SFP









注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
