1*9,10M,BIDI,Tx1550/Rx1310nm,40KM,-40℃~+85℃,SC/FC/ST

特点：

• 双波长复用单模单纤收发一体模块，发射、接收独立工作
• 发射器件工作波长可分别选用1310nmFP和1550FP/DFB激光器
• +3.3V/+5V供电SC/FC/ST插座式或尾纤型光接口
• 接口电平兼容标准 TTL 电平和 CMOS 电平
• 标准1×9管脚封装
• 极低功耗设计，满足特殊要求
• 传输速率低至直流，上限速率可选，最高可达 10Mb/s

Feature:

• Single mode single fiber BIDI Optical Module
• Transmitter section Selects 1310nm FP and 1550nm FP/DFB Laser
• Standard+3.3V/or+5V  Power  Supply
• SC/FC/ST receptacle optical interface and pigtail opticalinterface
• Standard TTL data output with signal detect indication,compatible with CMOS level
• Standard1×9  package
• Super low power consumption,applied to some special requirement
• Optional transmission bit rate with down to 0Mbpsand up to 10Mbps

 应用

• 工业控制的 RS232、RS485 等单片机
• 适用于DC 到10M 工业控制
• 电力控制
• 其他光纤传输

 Application

• RS232/RS485/RS422 receptacle fiber transmission
• Industrial control with bit rate up to DC 10Mbps
• Electric power control
• Other optic link

极限值 Absolute Maximum Ratings

推荐使用环境 Recommended Operating Environment:

技术指标
Specifications(T=25℃,VCC=4.75~5.25V(+5V)OrVcc=3.1~3.5V(+3.3V)
Transmitter 发射部分

Notes:

1.The optical power is launched into 9/125um SMF.

2.The maximum Optical Output Power complies with the IEEE 802.3z specification,and is class 1 laser eye safe.

3.Value of output power and sensitivity can be customized according to the demand.

外形尺寸及接口定义

Dimension and optical interface

BIDI 边开口 SC 型接口：(工业级)

BIDI SC optical interface on the edge:(Industrial Grade)

BIDI 边开口FC 型接口：(工业级)

BIDIFC optical interface on the edge:(Industrial Grade)

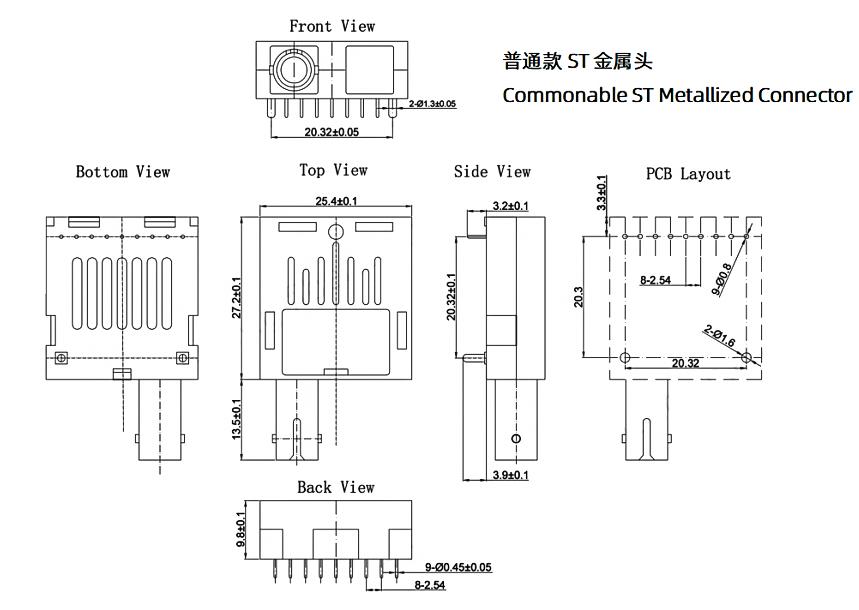

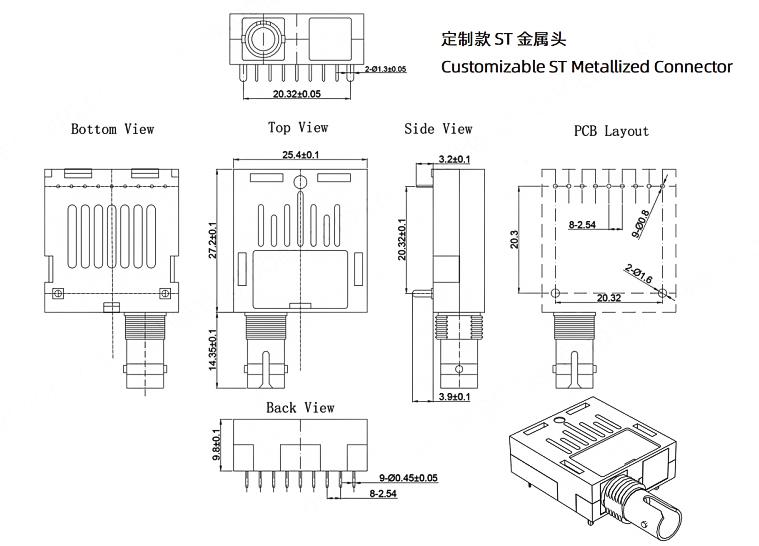

BIDI 边开口 ST 型接口(工业级)

BIDIST optical interface on the edge:(Industrial Grade)
