1×2 磁光开关

1×2 磁光开关

5.0/5 rating 1 vote

Description

1×2 磁光开关

产品特点
● 低插入损耗 ，重复性好
● 结构紧凑，尺寸小
● 切换速度快,切换次数接近无限次

应用范围
● 无源光网络
● 光保护系统
● 测量系统
● 网络监控

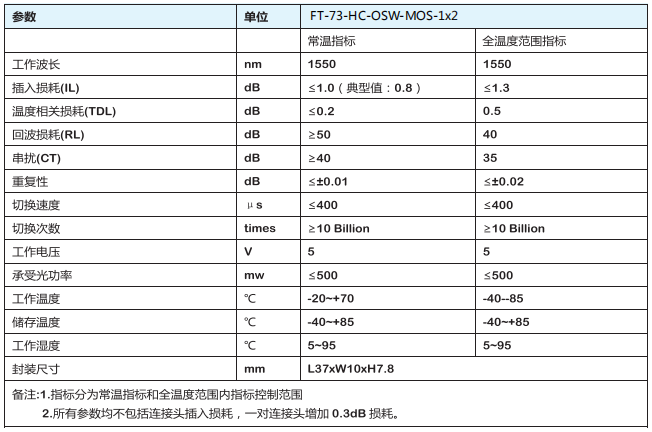

技术参数33e

驱动管脚定义33e

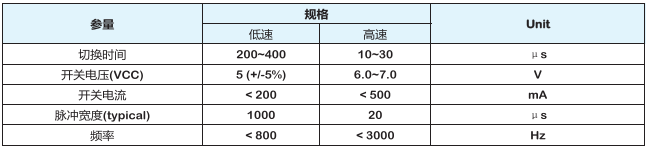

电控参数33e

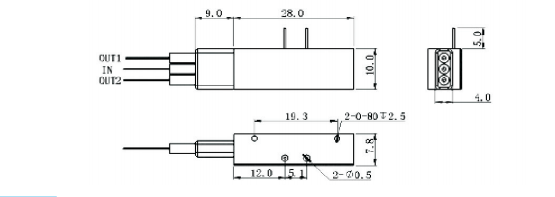

外形尺寸(mm)33e

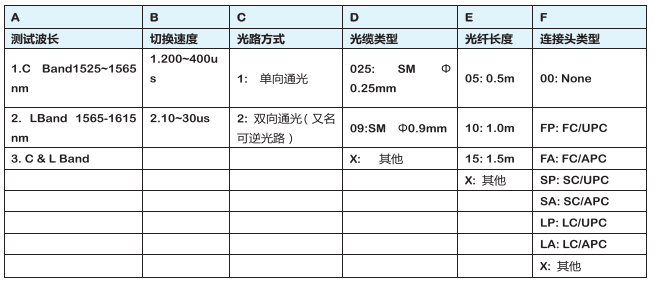

订购信息33e











Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
