1.25Gbps SFP Optical Transceiver, 10km Reach

Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features
● Dual data-rate of 1.25Gbps/1.063Gbps operation
● 1310nm FP laser and PIN photodetector for 10km transmission
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Digital Diagnostic Monitoring:Internal Calibration or External Calibration
● Compatible with SONET OC-24-LR-1
● Compatible with RoHS
● +3.3V single power supply
● Operating case temperature:
           Standard : 0 to +70°C
           Industrial : -40 to +85°C

Applications
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Switched backplane applications
● Router/Server interface
● Other optical transmission systems

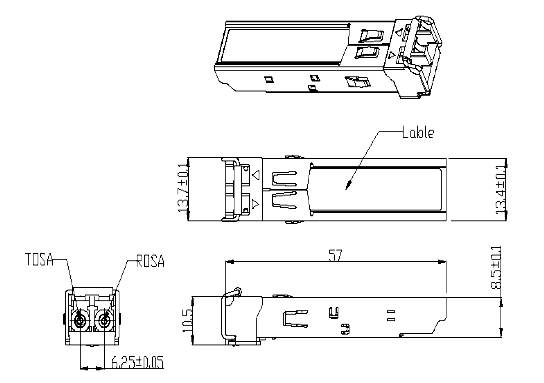

Mechanical Dimensions
Ordering information
