0~35Mbps 1X9 LVTTL Multimode Transceiver (2Km)

0~35Mbps 1X9 LVTTL Multimode Transceiver (2Km)

4.0/5 rating 1 vote

Description

0~35Mbps 1X9 LVTTL Multimode Transceiver (2Km)

FEATURES
● 850nm VCSEL Transmitter
● DC~35M Data Rate
● LVTTL Inputs & Outputs
● Single 3.3V Power Supply
● Duplex ST/SC Connector
● Industry Standard 1×9 Package
● Operating case temperature:
       FTTR-85LD-02 ： 0 ℃to 70℃
       FTTR-85LD-02I ： -40 ℃to 85℃
● RoHs Compliance

APPLICATIONS
● Low Rate Bus transmission
● Unbalanced Signal transparent transmission

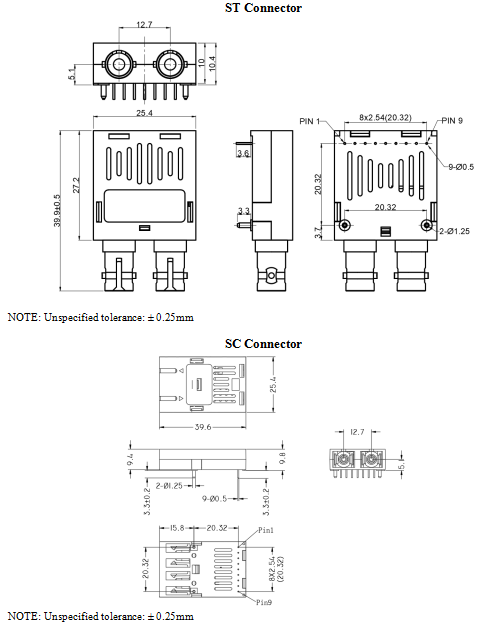

Mechanical Dimensions

106
Ordering Information

P/No.

Package

Bit Rate(Mb/s)

Dist.(km)

Wavelength(nm)

Volt.(V)

TX Power(dBm)

RX Sens(dBm)

Temp.(℃)

FTTR-85LD-02

ST/SC

0~35M

2

850

3.3

-8 to -3

-18

0 ~70

FTTR-85LD-02I

ST/SC

0~35M

2

850

3.3

-8 to -3

-18

-40 ~85













注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
