野战 B 型连接器-4芯

产品简介

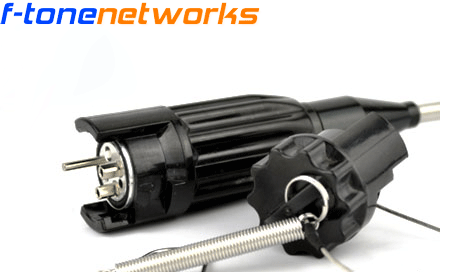

专为军用野战光缆配套设计,中性卡口式锁紧结构可实现头与座、头与头、座与座的快速任意连接。具有多芯一次连接并可盲插;连接损耗小、可靠性高;坚固、防水、防尘、耐恶劣环境等特点,可用于各种野战军用光纤通信网络、军用计算机系统、机载或舰载设备、抢修光缆系统等野外光路临时连接。

产品规格有:2芯、4芯、6芯、8芯、12芯


产品主要用于

  • 部队应急通信

  • 广播电视转播

  • 应急抢通光纤通信

  • 煤矿、油井等


连接器产品参数

插损 单模   ≤0.7dB(典型≤0.5dB)
多模   ≤0.5dB(典型≤0.2dB)
回损  单模   ≥50dB
机械性能 插头   ≤500N(主缆)
插座 ≤30N(分支光缆)
使用温度 -40℃~85℃
防护等级 IP67

配套光缆参数

光缆直径   4.0mm 5.0mm (或其它指定尺寸)
护套材料   LSZH(或 TPU)
抗拉单元   KEVLAR
光纤类型   9/125、50/125、62.5/125
光纤外覆   900um紧套纤
抗拉力   短期:600N 常期:200N
使用温度   -40℃~85℃

常用分支头




常用连接方案
