USB 3.0 Active Optical Cable

0.0/5 rating (0 votes)

Description

USB 3.0 Active Optical Cable

Description
F-tone Networks USB 3.0 AOC is consisted of two USB3.0 Standard-A connectors and multimode optical fiber, and each end has IC/VCSEL/PD, to complete the OE & EO conversion.
Note1: the fiber part of USB 3.0 AOC does not carry power, so upstream connector should be powered by Host side, and F-tone Networks Optical Active Cables do not provide or transmit power to devices.
Note2: Host side should be USB 3.0 compatible computer* (host computer) with a USB 3.0 compliant operating system.
* USB 3.0 AOC will not function when connected to USB2.0/USB1.1 Host.

Features
● Extends USB 3.0 super speed devices up to 100m over fiber optics(MMF OM2)
● Supports self-powered USB 3.0 compliant device
● Up to 5 Gbps data rate
● 850nm VCSEL transmitter, PIN photo-detector receiver
● Operates with USB 3.0 super speed hot controllers
● Supports all major operating systems including Windows, Mac OS, and Linux
● Number of devices can be increased using additional hubs
● Low power consumption
● Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
● All-metal housing for superior EMI performance
● RoHS compliant (lead free)

Applications
● Industrial Control
● Digital Signage
● Home Network Integration
● Medical Device Connectivity
● KVM Extension
● Remote Desktop USB 3.0 Connections
● Security: web camera, access control
● USB 3.0 Devices Sharing: print, scan, storage

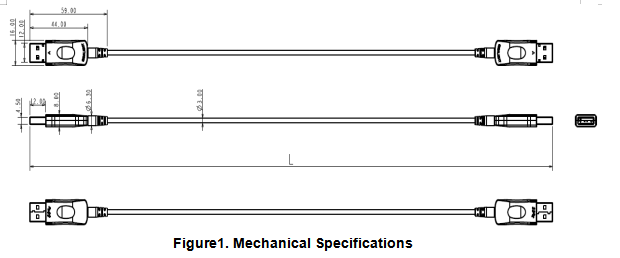

Mechanical

Ordering Information

Part Number	Product Description
USB3-AOC-01	1 meter USB 3.0 Active Optical Cable;0 to +70°C
USB3-AOC-02	2 meter USB 3.0 Active Optical Cable;0 to +70°C
USB3-AOC-03	3 meter USB 3.0Active Optical Cable;0 to +70°C
USB3-AOC-05	5 meter USB 3.0 Active Optical Cable;0 to +70°C
USB3-AOC-07	7 meter USB 3.0 Active Optical Cable;0 to +70°C
USB3-AOC-10	10 meter USB 3.0 Active Optical Cable;0 to +70°C
USB3-AOC-H0	100 meter USB 3.0 Active Optical Cable;0 to +70°C
USB3-AOC-01I	1 meter USB 3.0 Active Optical Cable;-40 to +85°C
USB3-AOC-02I	2 meter USB 3.0 Active Optical Cable;-40 to +85°C
USB3-AOC-03I	3 meter USB 3.0Active Optical Cable;-40 to +85°C
USB3-AOC-05I	5 meter USB 3.0 Active Optical Cable;-40 to +85°C
USB3-AOC-07I	7 meter USB 3.0 Active Optical Cable;-40 to +85°C
USB3-AOC-10I	10 meter USB 3.0 Active Optical Cable;-40 to +85°C
…	…
USB3-AOC-H0I	100 meter USB 3.0 Active Optical Cable;-40 to +85°C
xxx :1~100 Length in meters

注：本产品有全国产化型号可选
本产品仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
