SFP28 CWDM 10Km I-temp（1471~1571）(FTCS-Cxx25G-10Dxx)
Description
Description
This product is a 24.33~25.78Gbps transceiver，designed for optical communication compliant to CPRI Option 10 standard、25GBase. Its high performance cooled CWDM EML transmitter and high sensitivity APD receiver provide superior performance for CPRI/Ethernet application up to 10km (with FEC) Links.
The product is designed with form factor, optical/electrical connection according to the SFP28 Multi-Source Agreement (MSA)
Features
● Hot-pluggable SFP28 form factor
● Supports CPRI wireless data rate
● Cooled EML transmitter and APD receiver
● Suitable for use in 20nm channel spacing CWDM systems
● Internal CDR circuits on both receiver and transmitter channels
● Maximum power dissipation：1.8W
● Maximum link length：10Km on SMF
● Duplex LC connector
● Single 3.3V power supply
● RoHS compliant (lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● CPRI Option 10
● 25G Ethernet

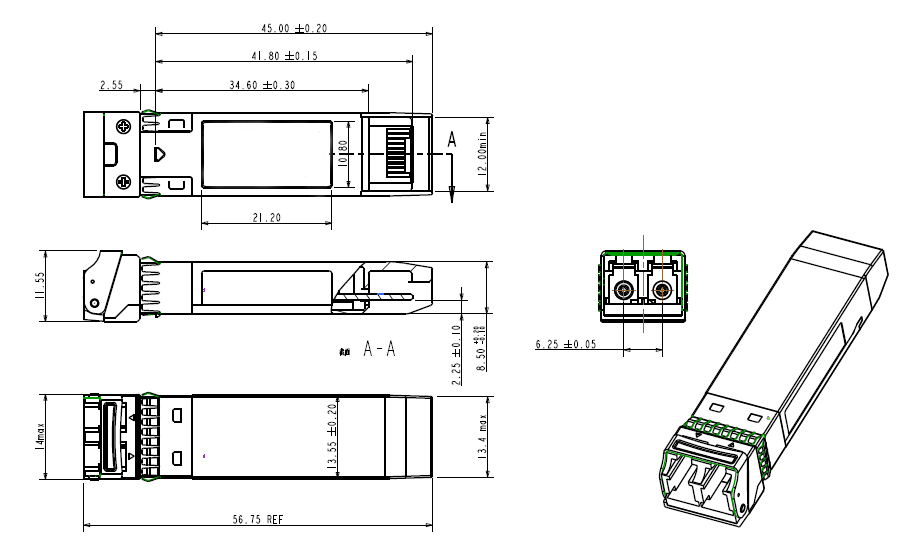

Mechanical Dimensions
F-tone Networks FTCS-Cxx25G-10Dxx SFP28 Transceivers are compatible with the SFF-8432 specification for improved pluggable form factor, and shown here for reference purposes only.
Ordering information
|
Part Number |
Product Description |
|
FTCS-Cxx25G-10D |
25Gbps 10km CWDM SFP28,0~+70ºC |
|
FTCS-Cxx25G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC |
|
FTCS-C4725G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1471nm,Gray |
|
FTCS-C4925G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1491nm, Violet |
|
FTCS-C5125G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1511nm,Blue |
|
FTCS-C5325G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1531nm,Green |
|
FTCS-C5525G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1551nm, Yellow |
|
FTCS-C5725G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1571nm,Orange |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
