SFP28 CWDM 10Km E-temp（127~1371）(FTCS-Cxx25G-10Dxx)
Description
Description
The F-tone Networks SFP28 CWDM 10km Transceiver is a “Limiting module”, designed for CPRI option10,25GBASE, link length up to 10km on G.652 SMF, link budget can reach 12dB.They are compliant with SFF-8431 Rev 4.1, SFF-8432 and SFF-8472 Rev 12.3.The transmitter section incorporates a DML laser，and the receiver section consists of a PIN photodiode integrated with TIA.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as case temperature, laser bias current, transmitted optical power, received optical power and module supply voltage.
Features
● Hot-pluggable SFP28 form factor
● Supports CPRI wireless data rate
● Uncooled DML transmitter and PIN receiver
● 20nm channel spacing CWDM systems
● Internal CDR circuits on both receiver and transmitter channels
● Maximum power dissipation：1.8W
● Maximum link length：10Km on SMF
● Duplex LC connector
● Single 3.3V power supply
● RoHS compliant (lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● CPRI Option 10
● 25G Ethernet

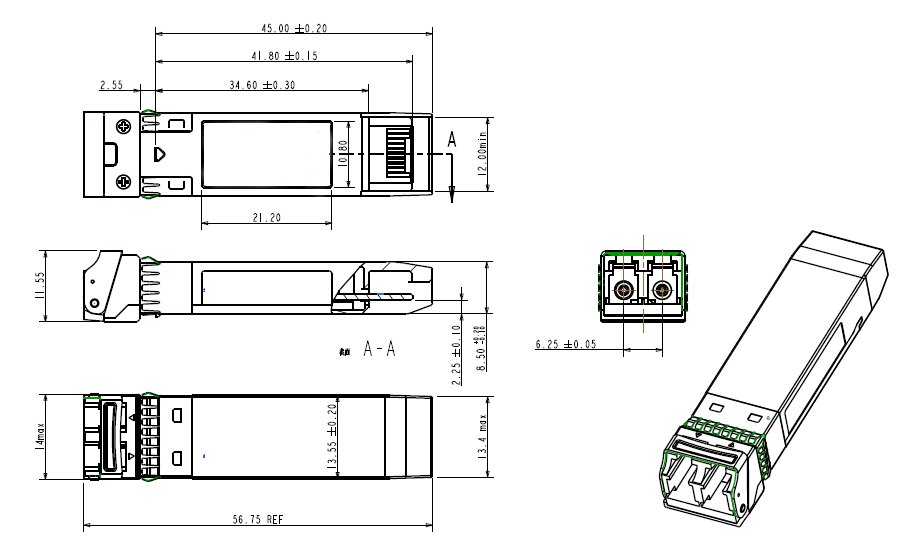

Mechanical Dimensions
F-tone Networks FTCS-Cxx25G-10Dxx SFP28 Transceiver are compatible with the SFF-8432 specification for improved pluggable form factor, and shown here for reference purposes only.
Ordering information
|
Part Number |
Product Description |
|
FTCS-Cxx25G-10D |
25Gbps 10km CWDM SFP28,0~+70ºC |
|
FTCS-Cxx25G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC |
|
FTCS-C2725G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1271nm,Water blue |
|
FTCS-C2925G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1291nm, Peach |
|
FTCS-C3125G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1311nm, Olivaceous |
|
FTCS-C3325G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1331nm, Kelly |
|
FTCS-C3525G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1351nm, Sky blue |
|
FTCS-C3725G-10DI |
25Gbps 10km CWDM SFP28,-40~+85ºC,1371nm, Pink |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
