SFP28 1310nm 32G FC 10Km (FTCS-1325G-10Dxx)
Description
Description
This product is a 32G FC SFP28 transceiver designed for optical communication compliant with 25GE and 32G FC standard. Its high performance uncooled DML transmitter and high sensitivity PIN receiver provide superior performance for 25GE and 32G FC application up to 10km (with FEC) Links.
The product is designed with SFP28 form factor, which is the optical/electrical connection according to the SFP+ Multi-Source Agreement (MSA).
Features
● Hot-pluggable SFP28 form factor
● Supports 25.78Gb/s aggregate bit rate
● Supports 28.05Gb/s aggregate bit rate
● Transmitter: uncooled 25Gb/s 1310nm DML TOSA
● Receiver: 25Gb/s PIN ROSA
● Internal CDR circuits on both receiver and transmitter channels
● 1.8W maximum power dissipation
● Maximum link length of 10Km over SMF
● Duplex LC receptacle
● Single 3.3V power supply
● RoHS compliant (2011/65/EU, lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● CPRI Option 10
● 25G Ethernet
● 32G FC

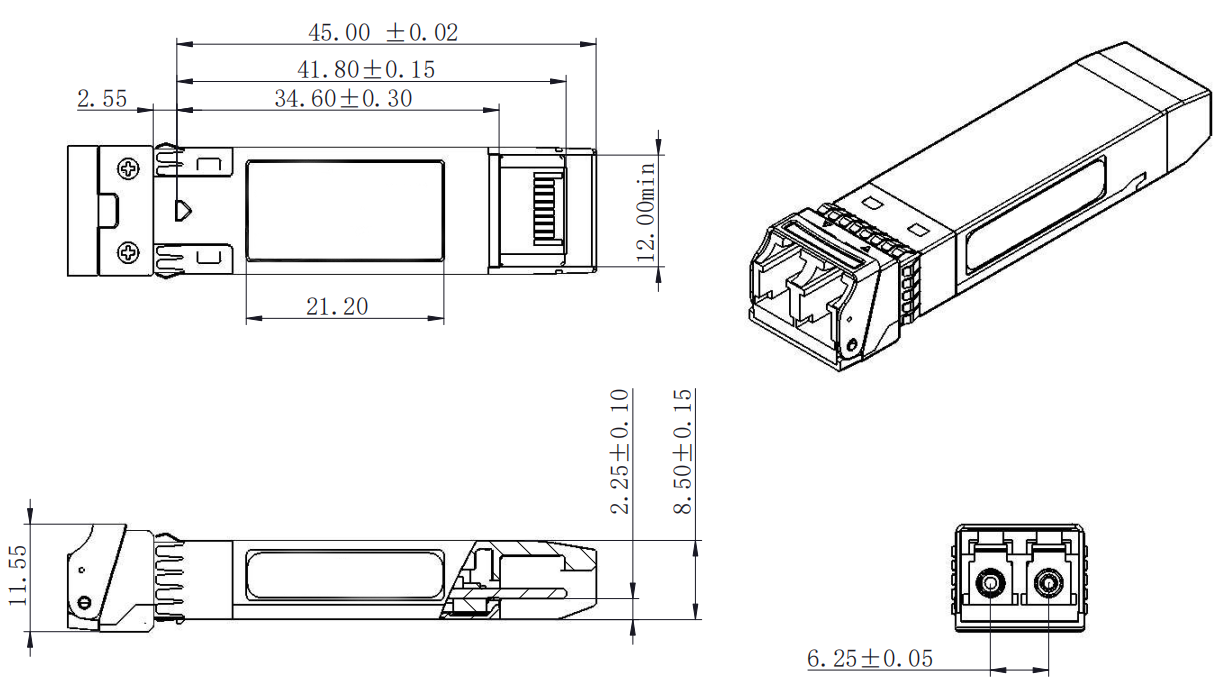

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-1325G-10D |
CPRI Option 10, 25GE, 32G FC, SFP28 LR,10km, 0ºC ~ +70ºC |
|
FTCS-1325G-10DI |
CPRI Option 10, 25GE, 32G FC, SFP28 LR,10km, -40ºC ~ +85ºC |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
